Simple data analysis (SDA)

SDA is a fast and easy-to-use TypeScript library for tabular, geospatial, vector, and AI-assisted data analysis. It runs on Node.js and makes it easy to load data from files, databases, and public sources.

Tip

Learn how to use SDA with Code Like a Journalist, a free and open-source TypeScript course for data analysis and visualization.

SDA is maintained by Nael Shiab, computational journalist and senior data producer for CBC News. You might also find the journalism library useful. Contributions are welcome; see the contribution guidelines.

Table of contents

Library structure

SDA is split into two packages:

simple-data-analysis-core contains all core functions that depend on DuckDB (data loading, filtering, joining, summarizing, geospatial operations, etc.). If you only need these core data analysis capabilities, you can use this lighter package directly.
simple-data-analysis (this package) extends the core with additional features: AI methods (row-by-row processing, embeddings, vector similarity, hybrid search, RAG, natural language queries), Google Cloud Storage and Google Sheets integrations, and charting/dataviz methods. These features are built respectively on the journalism-ai, journalism-google, and journalism-dataviz libraries.

Most users will want this package (simple-data-analysis), which includes all of the core functionality plus the extended features.

AI, Google, and charting dependencies load only when those operations run. If you only use core methods, you don't pay their startup cost.

The documentation includes all inherited Core methods. For AI assistants, use llm.md or llms.txt.

Installation

The library is available on npm.

npm i @nshiab/simple-data-analysis

To start a new data project with essential folders, configurations, and documentation for AI agents, you can use @nshiab/setup-data-project.

npx @nshiab/setup-data-project

Performance

SDA uses DuckDB to handle large tabular and geospatial analyses efficiently, often outperforming traditional dataframe tools while keeping the code simple and readable.

These benchmarks were run on a MacBook Pro with an Apple M4 Max and 64 GB of memory.

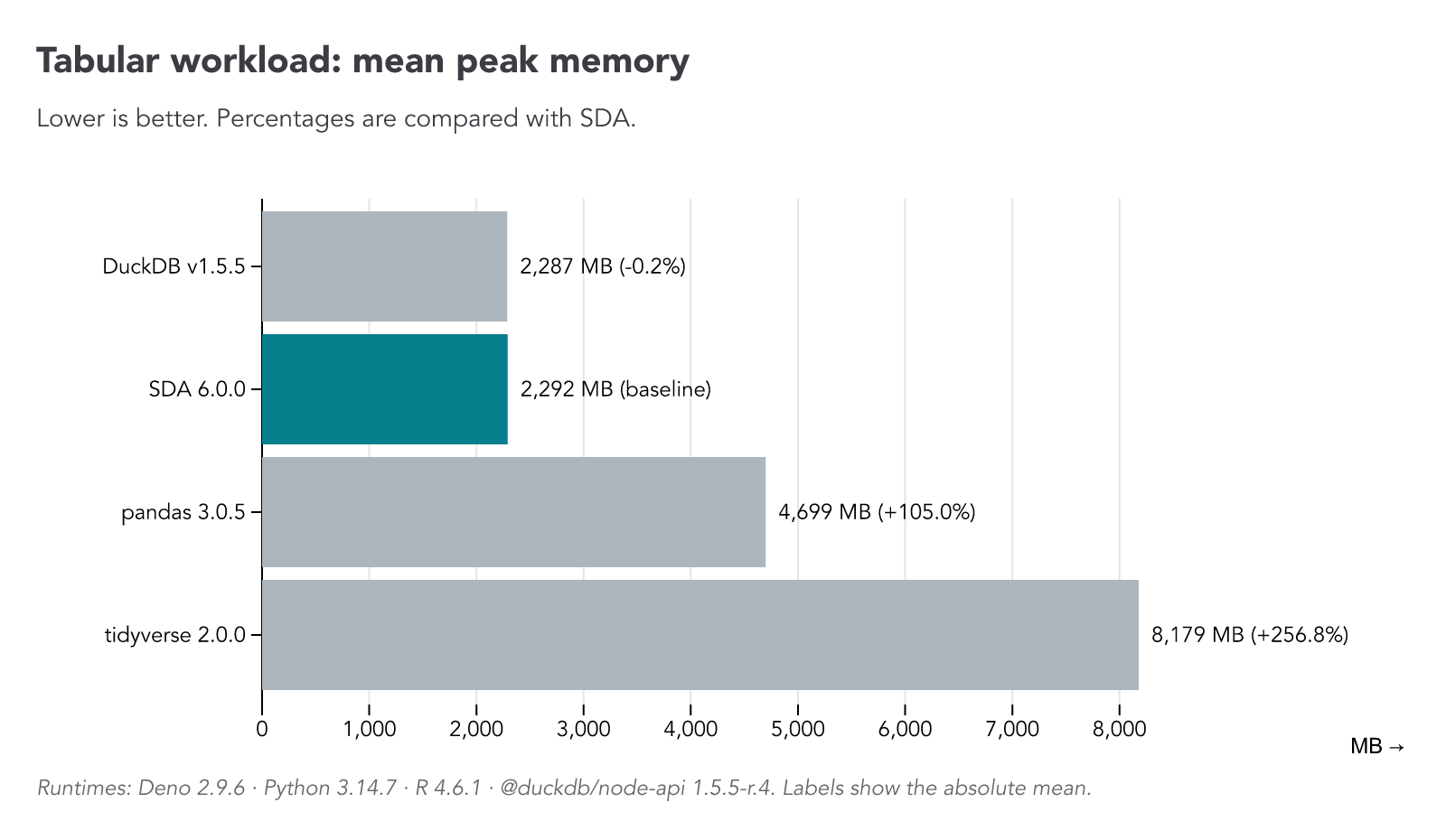

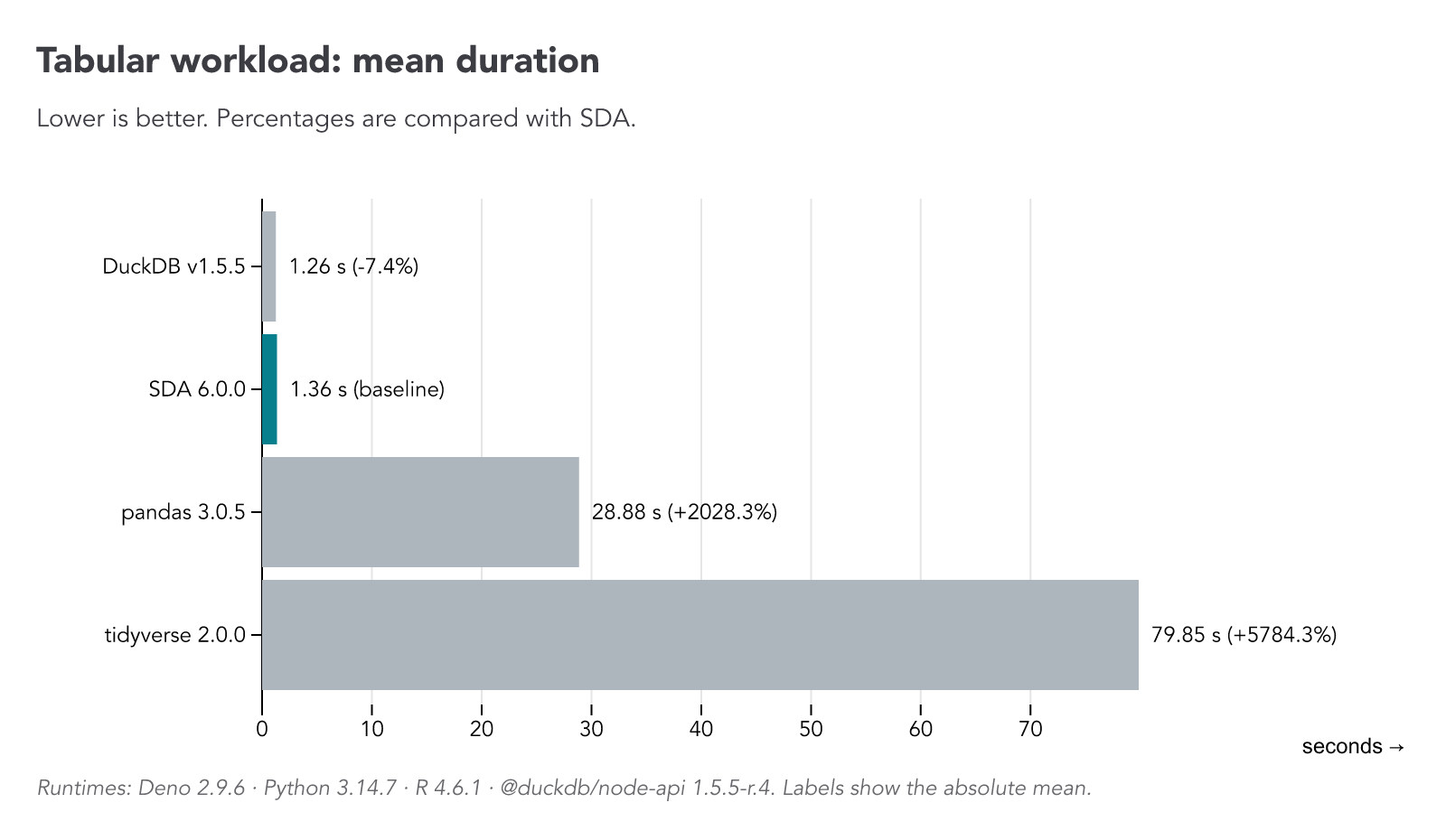

Tabular data

Using 22,051,025 temperature records (ahccd.csv, 1.77 GB, in benchmarks/data/), we remove missing temperatures, convert dates and numbers, save the cleaned data, then calculate average temperatures by station and decade and export the sorted results.

We ran the same analysis with SDA, pandas, the tidyverse, and raw DuckDB. SDA stays close to raw DuckDB while keeping the code simple and readable.

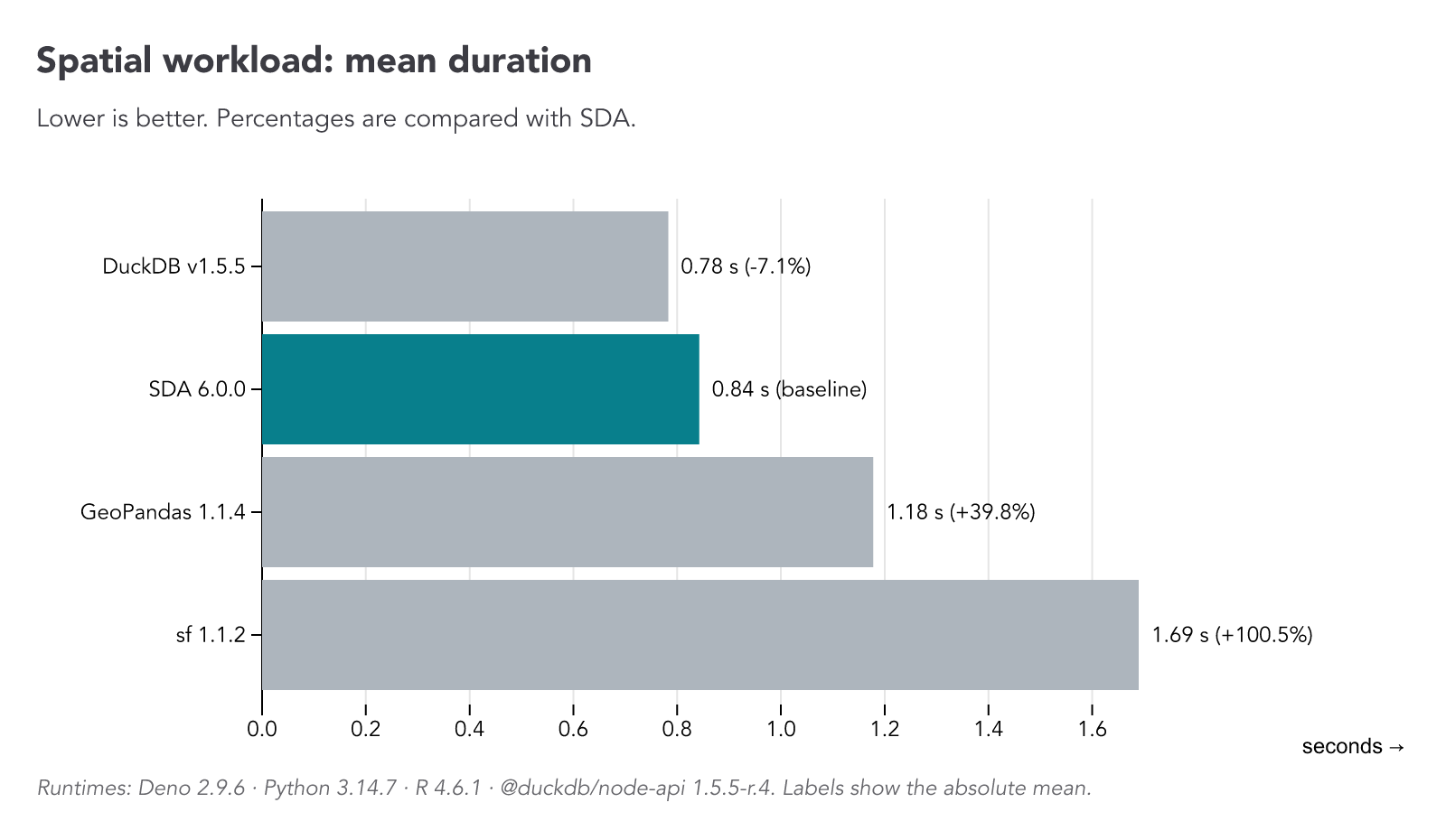

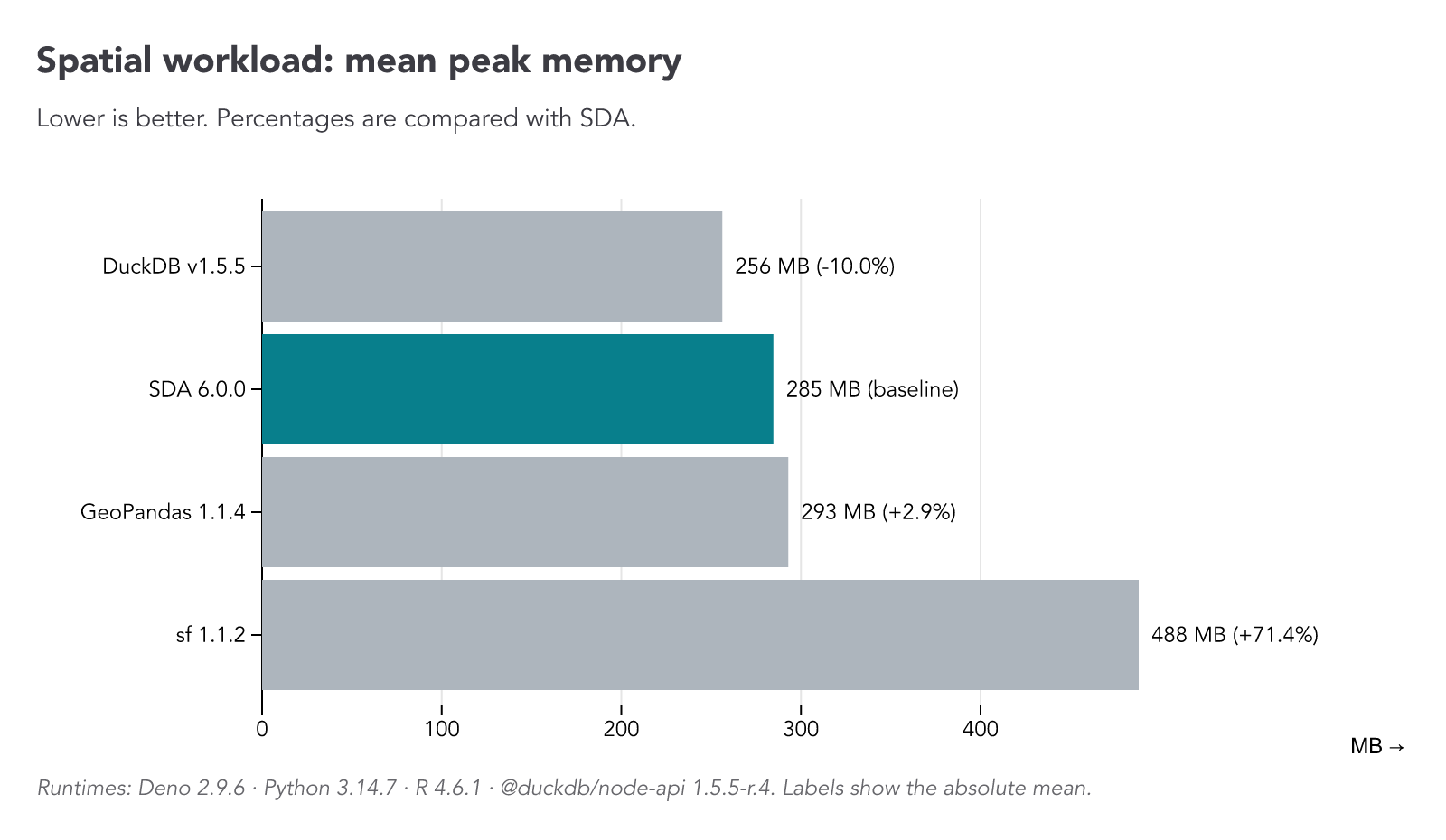

Geospatial data

Using 335,024 Montreal public trees (arbres-publics.csv, 135.5 MB) and 91 neighbourhood boundaries (quartierreferencehabitation.geojson, 1.14 MB), both in benchmarks/data/, we remove missing coordinates, create points, join trees to neighbourhoods, then count trees per neighbourhood and export the sorted results.

We ran the same analysis with SDA, GeoPandas, sf, and raw DuckDB. SDA brings DuckDB's geospatial tools to the same simple, chainable API.

Core principles

SDA is born out of the frustration of switching between Python, R, and JavaScript to produce data journalism projects. Usually, data crunching and analysis are done with Python or R, and interactive data visualizations are coded in JavaScript. However, being proficient in multiple programming languages is hard. Why can't we do everything in JS?

The missing piece in the JavaScript/TypeScript ecosystem was an easy-to-use and performant library for data analysis. This is why SDA was created.

The library is based on DuckDB, a fast in-process analytical database. Under the hood, SDA executes SQL queries in DuckDB through duckdb-node-neo. SDA also uses DuckDB extensions for additional capabilities, including duckdb_spatial for geospatial computations and other extensions for fuzzy matching, full-text search, vector indexes, and more. These extensions are loaded lazily, only when the corresponding features are used.

To keep data pipelines concise and fast, SDA queues core transformations instead of executing each one immediately. Consecutive compatible operations are fused into a single DuckDB statement, reducing database round trips. Transformation methods are synchronous and chainable; async observer methods such as getData(), log(), and writeData() flush the queue before producing their result. This means only the final observer needs to be awaited.

Export and chart observers (toSheet(), toDatawrapper(), toGeoDatawrapper(), writeChart(), writeMap(), logLineChart(), logDotChart(), logBarChart(), and logHistogram()) remain asynchronous and return Promise<this>, like writeData(). Await the operation to get the same table back, preserving its subclass type:

const table = await sdb.newTable().loadGeoData("regions.geojson").writeMap(map, "output/map.svg");
await table.filter("population > 100000").log();

aiRAG() and toBucket() remain asynchronous and return an answer or upload URI.

The syntax and the available methods were inspired by Pandas (Python) and the Tidyverse (R). Method and option names are kept simple and descriptive, so anyone can read an SDA pipeline and understand what is happening step by step.

Examples

Tabular data

In this example, we load daily temperatures for three Canadian weather stations, remove missing values, and compute the average temperature for each station. We then log the results and write them to a CSV file.

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();

const data = await sdb
  .newTable("temperatures")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/data/files/dailyTemperatures.csv",
  )
  .renameColumns({ t: "temperature", id: "station" })
  .removeMissing({ columns: "temperature" })
  .summarize({
    columns: "temperature",
    by: "station",
    stats: "mean",
    decimals: 2,
  })
  .sort({ mean: "desc" })
  .log();

await data.writeData("sda/output/averageTemperatures.csv");

await sdb.close();

Geospatial data

In this example, we load a CSV file with the latitude and longitude of 2023 wildfires in Canada, create point geometries from it, do a spatial join with provinces' boundaries, write the joined data to a GeoJSON file, and then compute the number of fires and the total area burnt per province.

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();

const fires = await sdb
  .newTable("fires")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/geodata/files/firesCanada2023.csv",
  )
  .createPoints("lat", "lon", "geom")
  .log();

const provinces = await sdb
  .newTable("provinces")
  .loadGeoData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/geodata/files/CanadianProvincesAndTerritories.json",
  )
  .log();

// Join fires with provinces so each fire has its province's attributes attached.
const firesInsideProvinces = await fires
  .joinGeo(provinces, "inside", {
    outputTable: "firesInsideProvinces",
  })
  .removeMissing()
  .removeColumns("geomProvinces")
  .log();

// Write the joined, detailed fire data to a GeoJSON file.
await firesInsideProvinces.writeGeoData("sda/output/firesInsideProvinces.geojson");

// Count the fires and sum the burnt area per province.
await firesInsideProvinces
  .summarize({
    columns: "hectares",
    by: "nameEnglish",
    stats: { nbFires: "count", burntArea: "sum" },
    decimals: 0,
  })
  .sort({ burntArea: "desc" })
  .log();

await sdb.close();

Data visualisations

Charts

You can easily display charts directly in the terminal with the logBarChart, logDotChart, logLineChart and logHistogram methods.

But you can also create Observable Plot charts as an image file (.png or .svg) with writeChart.

Here's an example.

import { SimpleDB } from "@nshiab/simple-data-analysis";
import { dodgeX, dot, plot } from "@observablehq/plot";

const sdb = new SimpleDB();
const table = await sdb
  .newTable()
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/geodata/files/firesCanada2023.csv",
  )
  .filter(`hectares > 1`)
  .replace("cause", { H: "Human", N: "Natural", U: "Unknown" })
  .log();

// We create a beeswarm chart with a log scale, faceted by cause.
await table.writeChart(
  (data) =>
    plot({
      height: 600,
      width: 800,
      color: { legend: true },
      y: { type: "log", label: "Hectares" },
      r: { range: [1, 20] },
      marks: [
        dot(
          data,
          dodgeX("middle", {
            fx: "cause",
            y: "hectares",
            fill: "cause",
            r: "hectares",
          }),
        ),
      ],
    }),
  "sda/output/chart.png",
);

await sdb.close();

Maps

If you want to create Observable Plot maps, you can use writeMap.

Here's an example.

import { SimpleDB } from "@nshiab/simple-data-analysis";
import { geo, plot } from "@observablehq/plot";

const sdb = new SimpleDB();

const fires = await sdb
  .newTable("fires")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/geodata/files/firesCanada2023.csv",
  )
  .createPoints("lat", "lon", "geom")
  .replace("cause", { H: "Human", N: "Natural", U: "Unknown" })
  .selectColumns(["geom", "hectares", "cause"])
  .filter(`hectares > 0`)
  .log();

const provinces = await sdb
  .newTable("provinces")
  .loadGeoData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/geodata/files/CanadianProvincesAndTerritories.json",
  )
  .log();

// Create a map covering all provinces and territories.
await provinces.writeMap(
  // Province polygons are provided as GeoJSON, already rewound for D3.
  async (provinces) => {
    return plot({
      projection: {
        type: "conic-conformal",
        rotate: [100, -60],
        domain: provinces,
      },
      color: {
        legend: true,
      },
      r: { range: [0.5, 25] },
      marks: [
        geo(provinces, {
          stroke: "lightgray",
          fill: "whitesmoke",
        }),
        // Retrieve the fire locations as GeoJSON for the second layer.
        geo(await fires.getGeoData(), {
          r: "hectares",
          fill: "cause",
          fillOpacity: 0.25,
          stroke: "cause",
          strokeOpacity: 0.5,
        }),
      ],
    });
  },
  "sda/output/map.png",
);

await sdb.close();

Public data sources

SDA can download data directly from established public sources. Retrieved data is cached locally by default, making it easy to build reproducible workflows without repeatedly downloading the same datasets.

Statistics Canada

Use loadStatCanData with a Statistics Canada table identifier:

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();

// Fetch population estimates for Canada, provinces, and territories, then keep Canada.
await sdb.newTable("population").loadStatCanData("17-10-0005-01").filter("GEO = 'Canada'").log();

await sdb.close();

OpenStreetMap

Use loadOpenStreetMap() for both existing .osm or .osm.pbf files and OpenStreetMap features downloaded through Overpass. Processed OpenStreetMap data is cached by default.

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();

// Load an existing local file.
await sdb
  .newTable("montreal")
  .loadOpenStreetMap("./montreal.osm.pbf", { verbose: true })
  .filter("tags['amenity'] = 'school'")
  .selectColumns(["id", "tags", "geom"])
  .log();

// Download schools within a bounding box.
await sdb
  .newTable("schools")
  .loadOpenStreetMap(
    {
      west: -73.587799,
      south: 45.445078,
      east: -73.552265,
      north: 45.471086,
    },
    { filters: ["amenity", "school"], verbose: true },
  )
  .log();

await sdb.close();

AI

SDA can use LLMs and embedding models to enrich data, search text, and answer questions based on the contents of a table. Choose one of the following .env configurations.

For the Gemini API:

AI_PROVIDER=gemini
AI_MODEL=gemini-3-flash-preview
AI_EMBEDDINGS_PROVIDER=gemini
AI_EMBEDDINGS_MODEL=gemini-embedding-001
AI_KEY=your-gemini-api-key

For Vertex AI, replace AI_KEY with your Google Cloud project and location:

AI_PROVIDER=gemini
AI_MODEL=gemini-3-flash-preview
AI_EMBEDDINGS_PROVIDER=gemini
AI_EMBEDDINGS_MODEL=gemini-embedding-001
AI_PROJECT=my-google-cloud-project
AI_LOCATION=us-central1

For local Ollama models:

AI_PROVIDER=ollama
AI_MODEL=gemma3:4b
AI_EMBEDDINGS_PROVIDER=ollama
AI_EMBEDDINGS_MODEL=nomic-embed-text

SDA's AI capabilities come from journalism-ai. By default, LLM responses and embeddings are cached in the hidden .journalism-cache folder, avoiding repeated model calls for the same request. Processing callbacks still run on cache hits; their output is not cached. Keep them lightweight for large workloads. This differs from table-level cache(), which caches computation results in .sda-cache.

Enrich rows with AI

The aiRowByRow method sends the values of a column to an LLM and stores the structured responses in one or more new columns. It processes requests concurrently and can record row-level errors, making it useful for cleaning, extracting, classifying, and enriching data at scale.

// Uses AI_PROVIDER, AI_MODEL, and any required credentials from .env.
import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
const cities = sdb.newTable("cities");

await cities
  .loadArray([{ city: "Marrakech" }, { city: "Kyoto" }, { city: "Auckland" }])
  .aiRowByRow("city", ["country", "continent"], "Give me the country and continent of the city.", {
    concurrency: 5,
    errorColumn: "error",
    logProgress: true,
  })
  .log();

await sdb.close();

The resulting table would be:

city	country	continent	error
Marrakech	Morocco	Africa	null
Kyoto	Japan	Asia	null
Auckland	New Zealand	Oceania	null

Use processResponse to transform or validate one generated row object at a time, even when batching. Return an object with the requested columns, or a promise of it. Throwing or rejecting follows retry and retryCheck for the whole batch. The callback reruns on cache hits, and its output is never cached.

Create embeddings

Embeddings represent text as lists of numbers that capture aspects of its meaning. Texts with similar meanings tend to have similar embeddings, so we can compare descriptions even when they use different words.

Let's use aiEmbeddings to turn recipe descriptions into vectors. Each recipe keeps its original columns and gets a new embedding column. These vectors can then be used for clustering, visualization, and semantic search.

// Uses AI_EMBEDDINGS_PROVIDER, AI_EMBEDDINGS_MODEL, and any required credentials
// from .env.
import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
await sdb
  .newTable("recipes")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/data/files/recipesClean.parquet",
  )
  .aiEmbeddings("Recipe", "embedding")
  .log();

await sdb.close();

Here are three rows generated with nomic-embed-text:latest. Recipe text and vectors are shortened for readability, and embedding values are rounded.

Dish	Recipe	embedding
Pizza	Pizza is a savory dish of Italian origin…	[0.045, 0.099, -0.167, 0.051, …]
Paella	Paella is a traditional Spanish rice dish…	[0.038, 0.085, -0.183, -0.005, …]
Goulash	Goulash is a hearty and flavorful stew of meat and vegetables…	[-0.028, 0.090, -0.181, -0.053, …]

Cluster and visualize embeddings

We can group similar recipe descriptions with hdbscan. It clusters the original embeddings and labels recipes it cannot confidently assign as "noise". This example uses the same embedding settings and recipe data as above.

// Uses AI_EMBEDDINGS_PROVIDER, AI_EMBEDDINGS_MODEL, and any required credentials
// from .env.
import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
const recipes = await sdb
  .newTable("recipes")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/data/files/recipesClean.parquet",
  )
  .aiEmbeddings("Recipe", "embedding")
  .hdbscan("embedding", "cluster", {
    metric: "cosine",
    minSamples: 3,
  })
  .log();

await sdb.close();

Here are the five recipes in cluster-0. For readability, we show only their names and cluster labels. This group brings together related Middle Eastern dishes, including hummus, falafel, and bread-based dishes.

Dish	cluster
Fattet Hummus	cluster-0
Falafel	cluster-0
Baba Ghanoush	cluster-0
Fattoush	cluster-0
Fatteh	cluster-0

We can also use umap to project the embeddings into two dimensions and draw them with writeChart. After inspecting the recipes in each cluster, we assign descriptive names to the groups below. Nearby points suggest similar descriptions, but the projection does not preserve every distance.

// Uses AI_EMBEDDINGS_PROVIDER, AI_EMBEDDINGS_MODEL, and any required credentials
// from .env.
import { SimpleDB } from "@nshiab/simple-data-analysis";
import { dot, plot } from "@observablehq/plot";

const sdb = new SimpleDB();
const recipes = sdb
  .newTable("recipes")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/data/files/recipesClean.parquet",
  )
  .aiEmbeddings("Recipe", "embedding")
  .hdbscan("embedding", "cluster", {
    metric: "cosine",
    minSamples: 3,
  })
  .replace("cluster", {
    "cluster-0": "Middle Eastern dishes",
    "cluster-1": "Mexican dishes",
    "cluster-2": "Latin American dishes",
    "cluster-3": "Meat, rice & curry dishes",
    "cluster-4": "Soups & taro dishes",
  })
  .umap("embedding", { metric: "cosine" });

await recipes.writeChart(
  (data) =>
    plot({
      title: "A map of recipe descriptions",
      subtitle: "Embeddings from Nomic Embed Text, clustered with HDBSCAN.",
      x: { axis: null },
      y: { axis: null },
      color: {
        domain: [
          "Middle Eastern dishes",
          "Mexican dishes",
          "Latin American dishes",
          "Meat, rice & curry dishes",
          "Soups & taro dishes",
        ],
        scheme: "tableau10",
        unknown: "#dedede",
        legend: true,
      },
      marks: [
        dot(data, {
          x: "umapX",
          y: "umapY",
          fill: "cluster",
          r: (d) => (d.cluster === "noise" ? 2 : 4),
          sort: (d: { cluster: string }) => (d.cluster === "noise" ? 0 : 1),
        }),
      ],
    }),
  "sda/output/recipes-umap.png",
);
await sdb.close();

Semantic search

Once we have embeddings, we can search by meaning rather than exact wording. aiVectorSimilarity embeds a search query using the same model and finds the closest recipe vectors. Here, we ask for five recipes similar to "buttery pastry for breakfast".

// Uses AI_EMBEDDINGS_PROVIDER, AI_EMBEDDINGS_MODEL, and any required credentials
// from .env.
import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
const recipes = sdb.newTable("recipes");

// Compare the query embedding with each recipe embedding.
await recipes
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/data/files/recipesClean.parquet",
  )
  .aiEmbeddings("Recipe", "embedding")
  .aiVectorSimilarity("buttery pastry for breakfast", "embedding", 5, { similarityColumn: true })
  .log();

await sdb.close();

Here are the five results with Nomic Embed Text. For readability, we show only the dish names and similarity scores, rounded to three decimals.

Dish	…	similarity
Full English Breakfast	…	0.652
Pancakes	…	0.650
Bagel with Cream Cheese	…	0.635
Biscuits and Gravy	…	0.632
Kunafa	…	0.629

Retrieval-augmented generation (RAG)

We can take retrieval one step further and use the matching recipes to help an LLM answer a question. aiRAG first retrieves relevant rows with hybridSearch, which combines semantic matches from embeddings with bm25 keyword matches. It then asks the LLM to answer using only those rows.

// Uses both AI provider/model pairs and any required credentials from .env.
import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
// We retrieve the most relevant recipes and ask the AI to answer
// based only on their contents.
const answer = await sdb
  .newTable("recipes")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/data/files/recipesClean.parquet",
  )
  .aiRAG("I am vegan. What can I eat for lunch that is spicy?", "Dish", "Recipe", 10, {
    verbose: true,
  });

console.log(`${answer}\n`);

await sdb.close();

Here is the answer returned by gemma4:12b-mlx via Ollama, using Nomic Embed Text for embeddings:

I found that you can eat Chakalaka for lunch. Chakalaka is a South African vegetable stew that is typically spicy and flavorful. It includes the following ingredients:

Vegetable oil

Onions

Garlic

Red chilies

Bell peppers

Carrots

Turmeric

Curry powder

Cumin

Coriander

Diced tomatoes

Baked beans (or kidney/butter beans)

Vegetable broth or water

Natural language query

The aiQuery method turns a natural-language instruction into a SQL query and executes it on the table.

// Uses AI_PROVIDER, AI_MODEL, and any required credentials from .env.
import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
const temperatures = sdb.newTable("temperatures");

await temperatures
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/data/files/dailyTemperatures.csv",
  )
  .renameColumns({ t: "temperature", id: "station" })
  .aiQuery("Compute the average temperature for each station with two decimals.", { verbose: true })
  .log();

await sdb.close();

With gemma4:12b-mlx via Ollama, the model generates the following SQL query, which SDA executes on the table:

CREATE OR REPLACE TABLE "temperatures" AS
SELECT
  station,
  ROUND(AVG(temperature), 2) AS average_temperature
FROM "temperatures"
GROUP BY station;

The resulting table is:

station	average_temperature
7024745	7.03
1108380	9.85
6158355	8.87

Analysing relationships

Similarity analysis

When you want to find items that resemble a specific one, calculating a similarity score can be very useful, especially when you have many attributes to compare.

Let's say we love Louis Jadot Bourgogne Pinot Noir and want to discover similar wines. We can use similarityMahalanobis, as demonstrated below. Mahalanobis distance is useful because it can compare features with different units and scales, while also accounting for correlations between them.

The code loads the Vivino Burgundy dataset of 2,000 named wines, originally from Hugging Face. Many white wines have no recorded tannin value, so we replace missing tannin values with zero for this example. This is a simplifying assumption, not a measured value. We exclude 12 wines missing other characteristics. The code retrieves our favorite wine as the reference, then compares acidity, intensity, sweetness, and tannin to calculate a distance and similarity score for each wine. Finally, it logs the wines, with the closest matches first.

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
const wines = sdb
  .newTable("wines")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis-core/main/test/data/files/wine.csv",
  )
  .replaceNulls("tannin", 0)
  .removeMissing({ columns: ["acidity", "intensity", "sweetness"] });

// Retrieve our favorite wine's characteristics as an object.
const reference = await wines.getRow("fullName === 'Louis Jadot Bourgogne Pinot Noir'");

await wines
  .similarityMahalanobis(["acidity", "intensity", "sweetness", "tannin"], reference, "distance", {
    similarityColumn: true,
  })
  .sort({ similarity: "desc" })
  .log();

await sdb.close();

For readability, we excluded the reference wine from the table below and show only the five closest matches, keeping their names, distances, and similarity scores rounded to three decimals. The code keeps all matching rows and columns, including the reference wine.

fullName	distance	similarity
Maison Roche de Bellene Pinot Noir Bourgogne Vieilles Vignes	0.094	0.982
Moillard-Grivot Bourgogne Pinot Noir	0.117	0.977
Joseph Drouhin Laforet Bourgogne Pinot Noir	0.119	0.977
Louis Latour Bourgogne Pinot Noir	0.151	0.971
Albert Bichot Bourgogne Vieilles Vignes de Pinot Noir	0.165	0.968

It's always useful to visualize our data, so let's update our code to create a chart.

In the code below, we use similarityMahalanobis to calculate similarity scores and hdbscan to create clusters of wines with similar characteristics. We rename the identified clusters, then use umap to reduce the four features to X and Y coordinates and writeChart to create the scatter plot.

import { SimpleDB } from "@nshiab/simple-data-analysis";
import { dot, plot, text } from "@observablehq/plot";

const sdb = new SimpleDB();
const wines = sdb
  .newTable("wines")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis-core/main/test/data/files/wine.csv",
  )
  .replaceNulls("tannin", 0)
  .removeMissing({ columns: ["acidity", "intensity", "sweetness"] });

const reference = await wines.getRow("fullName === 'Louis Jadot Bourgogne Pinot Noir'");

await wines
  .similarityMahalanobis(["acidity", "intensity", "sweetness", "tannin"], reference, "distance", {
    similarityColumn: true,
  })
  .hdbscan(["acidity", "intensity", "sweetness", "tannin"], "cluster", {
    minClusterSize: 40,
    minSamples: 10,
  })
  .replace("cluster", {
    "cluster-0": "Lower-intensity reds",
    "cluster-1": "Higher-intensity reds",
    "cluster-2": "Mostly Chablis whites",
    "cluster-3": "Higher-intensity whites",
    "cluster-4": "Lower-acidity whites & rosés",
  })
  .umap(["acidity", "intensity", "sweetness", "tannin"])
  .writeChart(
    (data) =>
      plot({
        title: "Wines similar to our favorite Pinot Noir",
        x: { axis: null },
        y: { axis: null },
        color: {
          domain: [
            "Lower-intensity reds",
            "Higher-intensity reds",
            "Mostly Chablis whites",
            "Higher-intensity whites",
            "Lower-acidity whites & rosés",
          ],
          scheme: "tableau10",
          unknown: "#dedede",
          legend: true,
        },
        opacity: { domain: [0, 1], range: [0, 1] },
        marks: [
          dot(data, {
            x: "umapX",
            y: "umapY",
            fill: "cluster",
            fillOpacity: (d) => (d.similarity > 0.95 ? 1 : 0.25),
            r: 3,
            stroke: "black",
            strokeWidth: (d) =>
              d.fullName === reference.fullName ? 2 : d.similarity > 0.95 ? 0.75 : 0,
            strokeOpacity: (d) => (d.fullName === reference.fullName ? 1 : 0.35),
            sort: (d: { fullName: string; cluster: string }) =>
              d.fullName === reference.fullName ? 2 : d.cluster === "noise" ? 0 : 1,
          }),
          text(data, {
            filter: (d) => d.fullName === reference.fullName,
            x: "umapX",
            y: "umapY",
            text: "fullName",
            dy: -16,
            fill: "black",
            stroke: "white",
            strokeWidth: 4,
          }),
        ],
      }),
    "sda/output/wines-umap.png",
  );

await sdb.close();

Clustering and UMAP reveal five groups of wines. Our reference wine is highlighted, with its closest matches appearing nearby.

Network analysis

Network analysis focuses on connections between items, such as transactions between businesses, flights between airports, or friendships between people. SDA has useful methods for exploring these relationships (degree, neighbors, commonNeighbors, reachable, distances, shortestPath, paths, findCycles, topologicalSort, and connectedComponents).

For this example, we use a fictional flight schedule with 33 flights connecting 12 cities around the world. Each row is one flight, with a unique ID, origin, destination, departure and arrival times, and a price. Here are the first three rows:

flightId	origin	destination	departure (UTC)	arrival (UTC)	price
F001	Montreal	Toronto	2030-01-15 08:00	2030-01-15 09:30	80
F002	Montreal	New York	2030-01-15 09:00	2030-01-15 10:30	120
F003	Montreal	Vancouver	2030-01-15 10:00	2030-01-15 15:30	180

Starting in Montreal, which cities can we reach, and how many flights would it take? By default, distances counts the fewest connections to each city. This works for any network: the connections could also be transactions, friendships, or links between websites.

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
await sdb
  .newTable("flights")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis-core/main/test/data/graphs/flights.csv",
  )
  .distances("origin", "destination", "Montreal")
  .log();

await sdb.close();

Here are selected destinations. One step means a direct flight; two or more steps mean flights with connections.

node	steps
Toronto	1
New York	1
London	1
Paris	1
Tokyo	2
Sydney	2

However, with this flight dataset, we also need to account for takeoff and landing times and make sure we can catch connecting flights. SDA's graph analysis methods have convenient options to do this easily.

By rewriting our example with a few more options, we can account for all of that. We allow at least an hour between flights with minGapMs. weight adds up ticket prices, while elapsedTime also reports the time from the first departure to the final arrival, including layovers. Setting minimize: "weight" tells SDA to choose by price. If equally cheap routes have different step counts or durations, distances returns each distinct summary.

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
await sdb
  .newTable("flights")
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis-core/main/test/data/graphs/flights.csv",
  )
  .distances("origin", "destination", "Montreal", {
    startTimeColumn: "departure",
    endTimeColumn: "arrival",
    minGapMs: 60 * 60 * 1000,
    elapsedTime: true,
    weight: "price",
    minimize: "weight",
  })
  .sort({ total: "asc" })
  .log();

await sdb.close();

For readability, here are selected destinations. steps counts the flights in the journey, and total is their combined ticket price. We display elapsedTimeMs as hours below.

node	steps	total	elapsed time (hours)
Toronto	1	80	1.5
New York	1	120	1.5
London	2	350	10
Paris	3	430	12.25
Tokyo	2	700	17
Sydney	5	1020	38

You don't need all these options for every network. Without weights or time options, routes are measured by their number of connections. With distances, you can also set minimize: "steps" while still reporting price and elapsed time. For transaction data, you might use reachable to follow connections or degree to count payments received and sent. The methods handle traversing the network for you.

External services

Google Cloud Storage

The toBucket method writes a table to a temporary file and uploads it to Google Cloud Storage. The loadBucket method downloads and loads an object in chain order.

Set the project and bucket in .env. Authentication uses Google Application Default Credentials. If ADC should load credentials from a specific JSON file, also set GOOGLE_APPLICATION_CREDENTIALS to that file's path:

BUCKET_PROJECT=my-google-cloud-project
BUCKET_NAME=my-storage-bucket
# Optional: load credentials from a specific JSON file.
GOOGLE_APPLICATION_CREDENTIALS=./service-account.json

Load a table from one object, transform it, and upload the result as another object:

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();

const temperatures = await sdb
  .newTable("temperatures")
  .loadBucket("inputs/temperatures.parquet")
  .filter("temperature > 30")
  .log();

const uri = await temperatures.toBucket("outputs/hotTemperatures.parquet", { overwrite: true });

console.log(uri); // gs://my-storage-bucket/outputs/hotTemperatures.parquet

await sdb.close();

Google Sheets

The toSheet method sends a table directly to Google Sheets. Authenticate with a service account by setting its email and private key in .env:

GOOGLE_SERVICE_ACCOUNT_EMAIL=service-account@example.iam.gserviceaccount.com
GOOGLE_PRIVATE_KEY="-----BEGIN PRIVATE KEY-----\n...\n-----END PRIVATE KEY-----\n"

Alternatively, point GOOGLE_APPLICATION_CREDENTIALS to the service-account JSON file:

GOOGLE_APPLICATION_CREDENTIALS=./service-account.json

Share the spreadsheet with the service-account email before running the examples.

Load from a sheet

Use loadSheet() to load and transform data from a Google Sheet tab:

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();

await sdb
  .newTable("temperatures")
  .loadSheet("https://docs.google.com/spreadsheets/d/.../edit#gid=0")
  .filter("temperature > 30")
  .selectColumns(["station", "time", "temperature"])
  .log();

await sdb.close();

Write to a sheet

Use toSheet() to write a table to a Google Sheet tab:

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
const temperatures = sdb.newTable("temperatures");

await temperatures
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/data/files/dailyTemperatures.csv",
  )
  .renameColumns({ t: "temperature", id: "station" })
  .selectColumns(["station", "time", "temperature"])
  .toSheet("https://docs.google.com/spreadsheets/d/.../edit#gid=0");

await sdb.close();

Datawrapper

The toDatawrapper method sends a table directly to a Datawrapper chart or table. Add your API key to .env:

DATAWRAPPER_KEY=your-datawrapper-api-key

The chart ID is the short identifier in its Datawrapper URL. For maps, use toGeoDatawrapper with the same API key. The loadDatawrapper() and loadGeoDatawrapper() methods also use it.

// Uses DATAWRAPPER_KEY from .env.
import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB();
const temperatures = sdb.newTable("temperatures");

await temperatures
  .loadData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/data/files/dailyTemperatures.csv",
  )
  .renameColumns({ t: "temperature", id: "station" })
  .selectColumns(["station", "time", "temperature"])
  .toDatawrapper("myChartId", { republish: true });

await sdb.close();

Caching fetched and computed data

Instead of running the same code over and over again, you can cache the results. This can speed up your workflow, especially when fetching data or performing computationally expensive operations.

When you use the cache method, the data is cached in a hidden .sda-cache folder. With cacheVerbose enabled, the logs explain whether the callback, the table, and any additional inputs match the cached entry. cache() passes the table to its callback and automatically tracks changes made to that table before the cached step, as well as changes to other SimpleTables used by the callback. Use inputs for other values that should invalidate the cache, such as numbers or strings.

Here's an example caching fetched data and the result of a spatial join.

import { SimpleDB } from "@nshiab/simple-data-analysis";

const sdb = new SimpleDB({ cacheVerbose: true, logDuration: true });

// Cache the data until the callback or table changes.
const provinces = await sdb.newTable("provinces").cache((table) => {
  table.loadGeoData(
    "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/geodata/files/CanadianProvincesAndTerritories.json",
  );
});

// Cache the data for 60 seconds or until the callback or table changes.
const fires = await sdb.newTable("fires").cache(
  (table) => {
    table
      .loadData(
        "https://raw.githubusercontent.com/nshiab/simple-data-analysis/main/test/geodata/files/firesCanada2023.csv",
      )
      .createPoints("lat", "lon", "geom");
  },
  { ttl: 60 },
);

// Refresh this cache when the callback, the firesInsideProvinces table,
// or either table used by the callback changes.
const firesInsideProvinces = await sdb.newTable("firesInsideProvinces").cache((table) => {
  table
    .insertTables(fires)
    .joinGeo(provinces, "inside")
    .removeMissing()
    .summarize({
      columns: "hectares",
      by: "nameEnglish",
      stats: { nbFires: "count", burntArea: "sum" },
      decimals: 0,
    })
    .sort({ burntArea: "desc" });
});

await firesInsideProvinces.log("all");
await firesInsideProvinces.logBarChart("nameEnglish", "burntArea");

await sdb.close();

After the first run, here's what you'll see in your terminal. For each cache(), a file storing the results has been written in .sda-cache.

The whole script took around a second to complete.

cache() for provinces
Cache miss.
No matching cache entry exists for this computation.
Running computations and storing a new cache entry.
Computations done in 247 ms.
Wrote in cache in 1 ms.


cache() for fires
Cache miss.
No matching cache entry exists for this computation.
Running computations and storing a new cache entry.
Computations done in 350 ms.
Wrote in cache in 3 ms.


cache() for firesInsideProvinces
Cache miss.
No matching cache entry exists for this computation.
Running computations and storing a new cache entry.
Computations done in 68 ms.
Wrote in cache in 0 ms.


Table firesInsideProvinces:
┌───────────────────────────┬─────────┬───────────┐
│ nameEnglish               │ nbFires │ burntArea │
├───────────────────────────┼─────────┼───────────┤
│ Quebec                    │ 706     │ 5024737   │
│ Northwest Territories     │ 314     │ 4253907   │
│ Alberta                   │ 1208    │ 3214444   │
│ British Columbia          │ 2496    │ 2856625   │
│ Saskatchewan              │ 560     │ 1801903   │
│ Ontario                   │ 741     │ 441581    │
│ Yukon                     │ 227     │ 395461    │
│ Manitoba                  │ 301     │ 199200    │
│ Nova Scotia               │ 208     │ 25017     │
│ Newfoundland and Labrador │ 85      │ 21833     │
│ Nunavut                   │ 1       │ 2700      │
│ New Brunswick             │ 202     │ 854       │
└───────────────────────────┴─────────┴───────────┘
12 rows in total (count: 12)

Bar chart of "burntArea" per "nameEnglish":
                          ┌
                   Quebec ┤████████████████████████████████████████ 5,024,737
                          │
    Northwest Territories ┤██████████████████████████████████ 4,253,907
                          │
                  Alberta ┤██████████████████████████ 3,214,444
                          │
         British Columbia ┤███████████████████████ 2,856,625
                          │
             Saskatchewan ┤██████████████ 1,801,903
                          │
                  Ontario ┤████ 441,581
                          │
                    Yukon ┤███ 395,461
                          │
                 Manitoba ┤██ 199,200
                          │
              Nova Scotia ┤ 25,017
                          │
Newfoundland and Labrador ┤ 21,833
                          │
                  Nunavut ┤ 2,700
                          │
            New Brunswick ┤ 854
                          └


SimpleDB ran for 681 ms / 4 ms spent writing the cache

If you run the script less than 60 seconds after the first run, here's what you'll see.

Most computations are skipped and their cached data is loaded instead. In this example, the total runtime drops from 681 ms to 27 ms, making the second run around 25 times faster.

cache() for provinces
Cache hit.
Compute function unchanged.
Data loaded in 0 ms.
Running computations previously took 247 ms.
You saved 247 ms.


cache() for fires
Cache hit.
Compute function unchanged.
TTL of 1 min, 0 sec, 0 ms has not expired.
The creation date is May 28, 2026, at 4:37 p.m..
There are 54 sec, 941 ms left.
Data loaded in 21 ms.
Running computations previously took 312 ms.
You saved 291 ms.


cache() for firesInsideProvinces
Cache hit.
Compute function unchanged.
Table dependencies unchanged: "fires", "provinces".
Data loaded in 0 ms.
Running computations previously took 50 ms.
You saved 50 ms.

[Note to readers: I have cut the table and chart.]

SimpleDB ran for 27 ms / 588 ms saved by using the cache

After 60 seconds, the fires cache expires while the provinces cache is reused. Because firesInsideProvinces uses both tables in its callback, its cache refreshes automatically when the fires table changes.

cache() for provinces
Cache hit.
Compute function unchanged.
Data loaded in 1 ms.
Running computations previously took 247 ms.
You saved 246 ms.


cache() for fires
Cache entry is stale.
Compute function unchanged.
TTL of 1 min, 0 sec, 0 ms has expired.
The creation date is May 28, 2026, at 4:37 p.m..
It was created 1 min, 17 sec, 465 ms ago.
Running computations and refreshing the cache entry.
Computations done in 340 ms.
Wrote in cache in 3 ms.


cache() for firesInsideProvinces
Cache miss.
Compute function unchanged.
Table dependencies changed: "fires".
Table dependencies unchanged: "provinces".
Running computations and storing a new cache entry.
Computations done in 48 ms.
Wrote in cache in 1 ms.

[Note to readers: I have cut the table and chart.]

SimpleDB ran for 399 ms / 246 ms saved by using the cache / 4 ms spent writing the cache
