• 🚥 Render timelines in three different modes (Horizontal, Vertical, Vertical-Alternating).
• 📺  Auto play the timeline with the slideshow mode.
• 🖼️  Display Images & Videos in the timeline with ease.
• ⌨  Keyboard accessible.
• 🔧  Render custom content easily.
• 🌿  Nested timelines.
• ⚡  Data driven API.
• 🎨  Customize colors with ease.
• 🎭  Use custom icons in the timeline.
• 💪  Built with Typescript.
• 🎨  Styled with emotion.

• ⚡ Installation
• Getting Started
  • 🚥Vertical Mode
  • 🚥Vertical Alternating
• Props
  • Mode
  • Timeline item Model
  • ⌨Keyboard Navigation
  • Scrollable
  • 📺Media
  • Text overlay mode
  • 🛠Rendering custom content
  • 🎭Custom icons for the Timeline
  • 🌿Nested Timelines
  • Slideshow
  • Item Width
  • 🎥Media Settings
  • Breakpoint
  • 🎨Theme
  • Customize Font sizes
  • Customize alt text for buttons
• Using custom class names
• 📦CodeSandbox Examples
• Kitchen Sink
• 📚Storybook
• 🔨Build Setup
• 🧪Tests
• 🤝Contributing
• 🧱Built with
• Meta
• Contributors ✨

// install with yarn
yarn add react-chrono

// or with npm
npm install react-chrono

Please make sure you wrap the component in a container that has a width and height.

When no mode is specified, the component defaults to HORIZONTAL mode. Please check props for all the available options.

  import React from "react"
  import { Chrono } from "react-chrono";

  const Home = () => {
    const items = [{
      title: "May 1940",
      cardTitle: "Dunkirk",
      url: "http://www.history.com",
      cardSubtitle:"Men of the British Expeditionary Force (BEF) wade out to..",
      cardDetailedText: "Men of the British Expeditionary Force (BEF) wade out to..",
      media: {
        type: "IMAGE",
        source: {
          url: "http://someurl/image.jpg"
        }
      }
    }, ...];

    return (
      <div style={{ width: "500px", height: "400px" }}>
        <Chrono items={items} />
      </div>
    )
  }

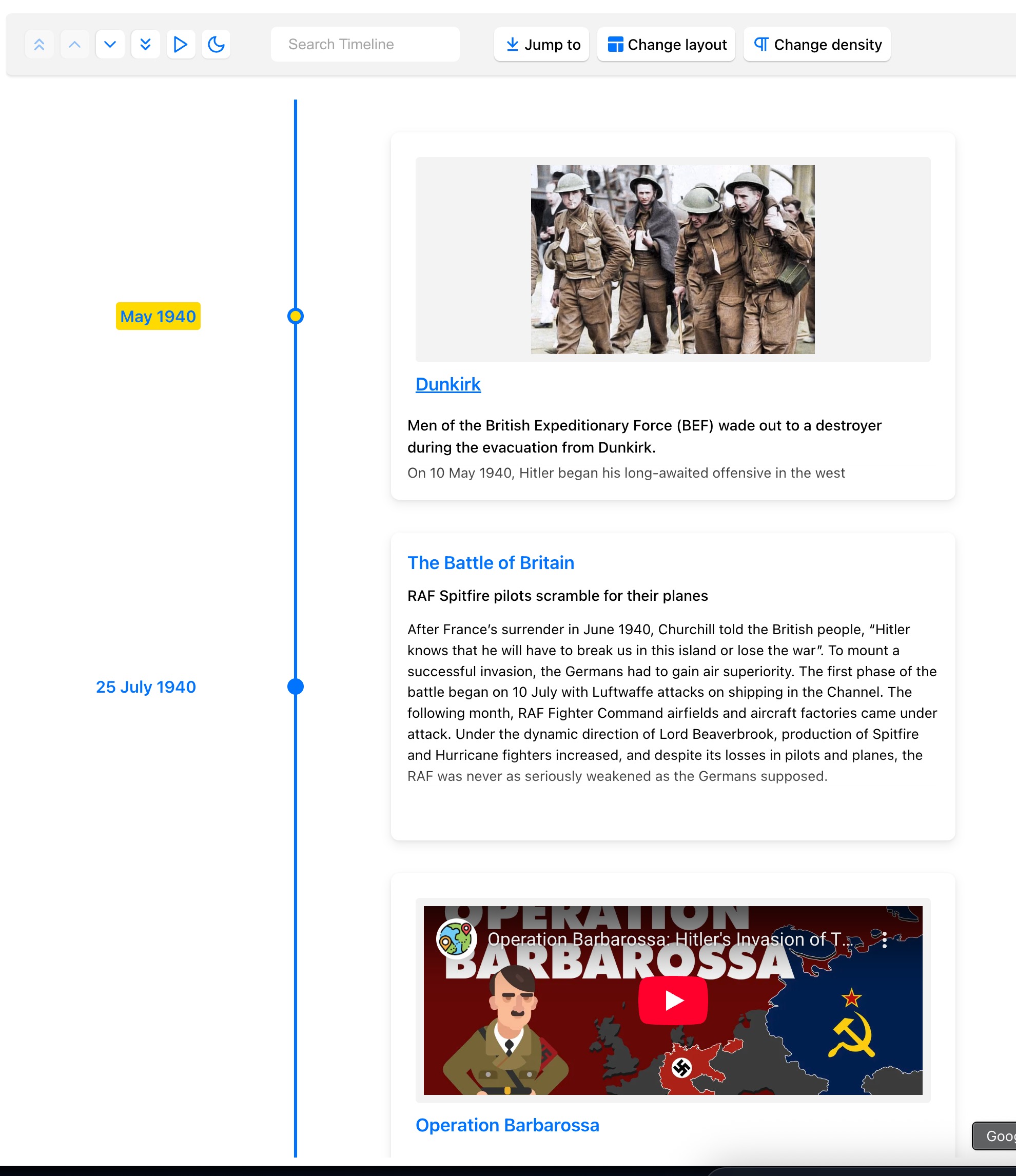

To render the timeline vertically use the VERTICAL mode

<div style={{ width: '500px', height: '950px' }}>
  <Chrono items={items} mode="VERTICAL" />
</div>

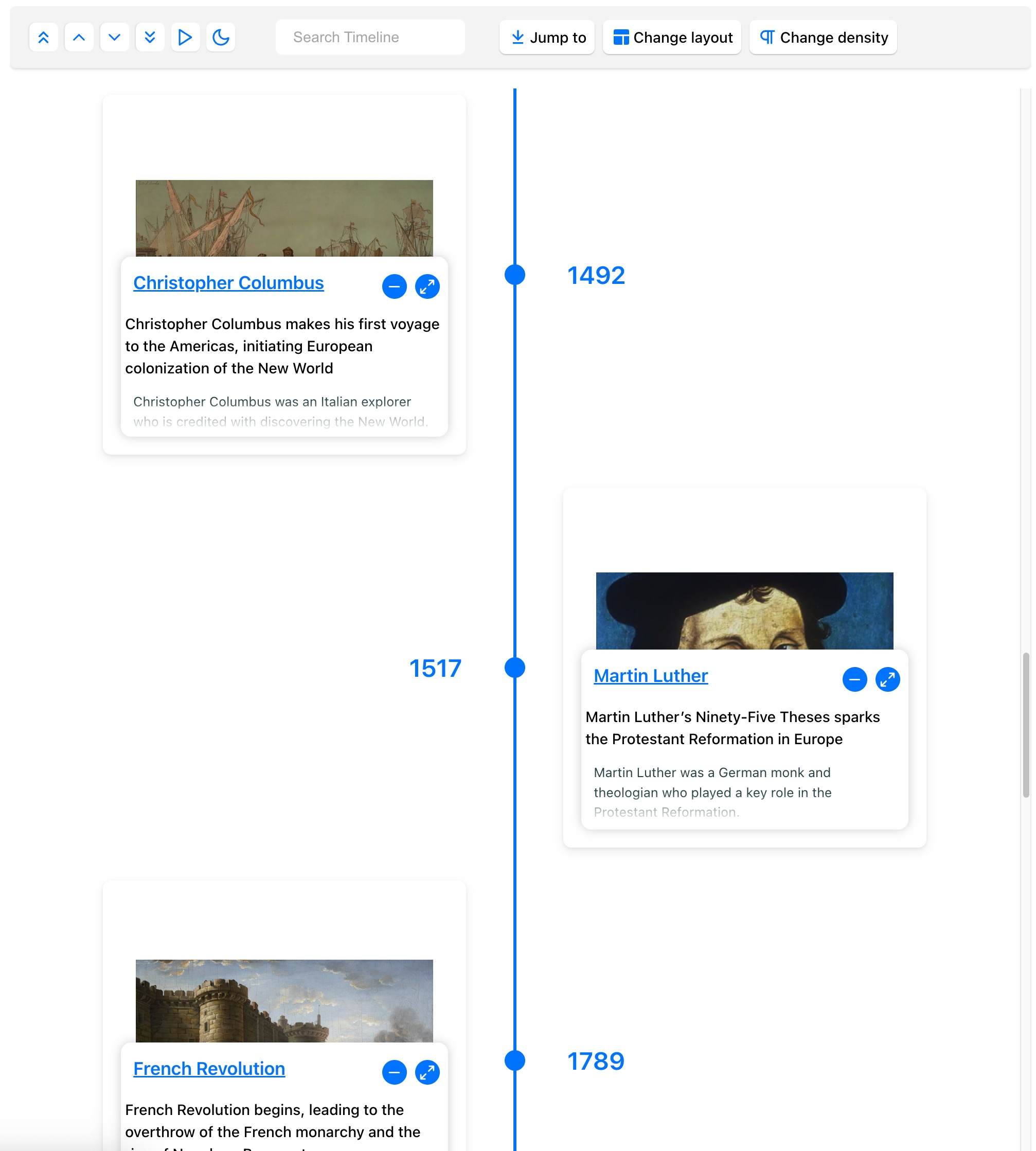

In VERTICAL_ALTERNATING mode the timeline is rendered vertically with cards alternating between left and right side.

<div style={{ width: '500px', height: '950px' }}>
  <Chrono items={items} mode="VERTICAL_ALTERNATING" />
</div>

Below are the available configuration options for the component:

react-chrono supports three modes HORIZONTAL, VERTICAL and VERTICAL_ALTERNATING. No additional setting is required.

<Chrono items={items} mode="HORIZONTAL" />

<Chrono items={items} mode="VERTICAL" />

<Chrono items={items} mode="VERTICAL_ALTERNATING" />

{
  title: "May 1940",
  cardTitle: "Dunkirk",
  cardSubtitle:
    "Men of the British Expeditionary Force (BEF) wade out to a destroyer during the evacuation from Dunkirk.",
  cardDetailedText: ["paragraph1", "paragraph2"],
  timelineContent: <div>Custom content</div>,
}

if you have a large text to display(via cardDetailedText) and want to split the text into paragraphs, you can pass an array of strings.

each array entry will be created as a paragraph inside the timeline card.

The timeline can be navigated via keyboard.

• For HORIZONTAL mode use your LEFT RIGHT arrow keys for navigation.
• For VERTICAL or VERTICAL_ALTERNATING mode, the timeline can be navigated via the UP DOWN arrow keys.
• To easily jump to the first item or the last item in the timeline, use HOME or END keys.

To disable keyboard navigation set disableNavOnKey to true.

<Chrono items={items} disableNavOnKey />

With the scrollable prop, you can enable scrolling on both VERTICAL and VERTICAL_ALTERNATING modes.

<Chrono items={items} scrollable />

The scrollbar is not shown by default. To enable the scrollbar, pass an object with prop scrollbar to scrollable prop.

<Chrono items={items} scrollable={{ scrollbar: true }} />

Both images and videos can be embedded in the timeline.

Just add the media attribute to the Timeline Item model and the component will take care of the rest.

{
  title: "May 1940",
  cardTitle: "Dunkirk",
  media: {
    name: "dunkirk beach",
    source: {
      url: "http://someurl/image.jpg"
    },
    type: "IMAGE"
  }
}

Videos start playing automatically when active and will be automatically paused when not active.

Like images, videos are also automatically hidden when not in the visible viewport of the container.

{
  title: "7 December 1941",
  cardTitle: "Pearl Harbor",
  media: {
    source: {
      url: "/pearl-harbor.mp4",
      type: "mp4"
    },
    type: "VIDEO",
    name: "Pearl Harbor"
  }
}

To embed YouTube videos, use the right embed url.

{
  title: "7 December 1941",
  cardTitle: "Pearl Harbor",
  media: {
    source: {
      url: "https://www.youtube.com/embed/f6cz9gtMTeI",
      type: "mp4"
    },
    type: "VIDEO",
    name: "Pearl Harbor"
  }
}

The textOverlay prop allows you to overlay text on top of a media element in a card.To enable the text overlay feature, simply add the text property to the items array in your Chrono timeline data. Here's an example:

import { Chrono } from 'react-chrono';

const items = [
  {
    title: 'First item',
    media: {
      type: 'IMAGE',
      source: {
        url: 'https://example.com/image.jpg',
      },
    },
    text: 'This is the caption for the first item.',
  },
];

function MyTimeline() {
  return <Chrono items={items} textOverlay />;
}

The user can click on the expand button to expand the text and see more details. Here's what it looks like:

With the textOverlay prop, you can give your timeline a modern and sleek look, and provide additional context or information about each item.

The Timeline cards of the component can also support embedded custom content. To insert custom content, pass the blocked elements between the Chrono tags. For instance, the below code snippet will generate two timeline items, where each div element will be automatically converted into a timeline item and inserted into the timeline card. The items collection mentioned in the code is completely optional, and custom rendering is supported on all three modes.

<Chrono mode="VERTICAL">
  <div>
    <p>Lorem Ipsum. Lorem Ipsum. Lorem Ipsum</p>
  </div>
  <div>
    <img src="<url to  a nice image" />
  </div>
</Chrono>

Note that the items collection will also work well with any custom content that is passed. In the following code snippet, the title and cardTitle are set for the custom contents.

const items = [
  { title: 'Timeline title 1', cardTitle: 'Card Title 1' },
  { title: 'Timeline title 2', cardTitle: 'Card Title 2' },
];

<Chrono mode="VERTICAL" items={items}>
  <div>
    <p>Lorem Ipsum. Lorem Ipsum. Lorem Ipsum</p>
  </div>
  <div>
    <img src="<url to  a nice image" />
  </div>
</Chrono>;

To utilize personalized icons on the timeline, enclose a collection of images between the chrono tags, wrapped in a container.

The icons are arranged sequentially; meaning, the first image that you pass in will be used as the icon for the first timeline item, and so on.

It is important to note that the image collection must be passed in inside a container with the designated chrono-icons className. This is a required convention, as the component relies on this className to select the appropriate images.

<Chrono items={items} mode="VERTICAL_ALTERNATING">
  <div className="chrono-icons">
    <img src="image1.svg" alt="image1" />
    <img src="image2.svg" alt="image2" />
  </div>
</Chrono>

custom icons also works if you are rendering custom content inside the cards.

<Chrono mode="VERTICAL" items={items}>
  <div>
    <p>Lorem Ipsum. Lorem Ipsum. Lorem Ipsum</p>
  </div>
  <div>
    <img src="<url to  a nice image" />
  </div>
  <div className="chrono-icons">
    <img src="image1.svg" alt="image1" />
    <img src="image2.svg" alt="image2" />
  </div>
</Chrono>

Nested timelines in React-Chrono allow you to display timelines within timeline cards. This feature is data-driven, which means that if a timeline item has an items array, the component will automatically attempt to render the nested timeline inside the timeline card.

To use nested timelines, simply provide an array of items within the items property of a timeline item. The component will then take care of rendering the nested timeline for you.

You can also adjust the height of the nested timeline card using the nestedCardHeight prop. This allows you to control the size of the card to fit your specific use case.

const items = [
  {
    title: 'Timeline title 1',
    cardTitle: 'Card Title 1',
    items: [
      { cardTitle: 'nested card title 1' },
      { cardTitle: 'nested card title 2' },
    ],
  },
  { title: 'Timeline title 2', cardTitle: 'Card Title 2' },
];

<Chrono mode="VERTICAL" items={items}></Chrono>;

Enabling the slideshow feature can be done by setting the slideShow prop to true. Additionally, an optional slideItemDuration prop can be set to determine the time delay between cards.

Enabling this prop will cause the play button to appear in the timeline control panel. Use the slideShowType prop to set the type of slideshow animation.

<Chrono
  items={items}
  slideShow
  slideItemDuration={4500}
  slideShowType="reveal"
/>

The slideshow can be cancelled by clicking on the stop button in the control panel or by pressing the ESC key.

The itemWidth prop can be used to set the width of each individual timeline sections. This setting is applicable only for the HORIZONTAL mode.

Use media settings to align the media or change how a image is displayed in the card.

<Chrono items={items} mediaSettings={{ align: 'right', fit: 'contain' }} />

Use the breakpoint feature to automatically switch the timeline to VERTICAL mode when there is not enough space for VERTICAL_ALTERNATING mode, such as on mobile devices. Set the auto switch to happen by enabling the enableBreakPoint prop and specifying the pixel limit with the verticalBreakPoint prop.

<Chrono items={items} enableBreakPoint verticalBreakPoint={400} />

Customize colors with the theme prop.

Checkout the documentation for the complete list of available theme properties.

<Chrono
  items={items}
  theme={{
    primary: 'red',
    secondary: 'blue',
    cardBgColor: 'yellow',
    titleColor: 'black',
    titleColorActive: 'red',
  }}
/>

Use the fontSizes prop to customize the font sizes of the timeline card.

<Chrono
  items={data}
  mode="HORIZONTAL"
  fontSizes={{
    cardSubtitle: '0.85rem',
    cardText: '0.8rem',
    cardTitle: '1rem',
    title: '1rem',
  }}
></Chrono>

With the buttonTexts prop, you can change the button's alt text.

<Chrono
  items={data}
  mode="HORIZONTAL"
  buttonTexts={{
    first: 'Jump to First',
    last: 'Jump to Last',
    next: 'Next',
    previous: 'Previous',
  }}
></Chrono>

Defaults

You can use the classNames prop to employ your own class names. The subsequent example illustrates how you can use custom class names on different elements.

<Chrono
  className="my-timeline"
  items={items}
  classNames={{
    card: 'my-card',
    cardMedia: 'my-card-media',
    cardSubTitle: 'my-card-subtitle',
    cardText: 'my-card-text',
    cardTitle: 'my-card-title',
    controls: 'my-controls',
    title: 'my-title',
  }}
/>

• Horizontal Basic
• Horizontal - Show all cards
• Vertical basic
• Vertical Alternating
• Vertical All Images
• Vertical Custom content
• Vertical Custom content with items collections
• Custom Icons

• Kitchen Sink

Deep dive into wide variety of examples hosted as a Storybook.

• Horizontal Collection
• Vertical Collection

# install dependencies
pnpm install

# start dev
pnpm dev

# run css linting
pnpm lint:css

# eslint
pnpm eslint

# prettier
pnpm lint

# package lib
pnpm rollup

  # run unit tests
  pnpm test

  # run cypress tests
  pnpm cypress:test

  # run cypress tests in headless mode
  pnpm cypress:headless

  # run cypress tests in quiet mode
  pnpm cypress:quiet

1. Fork it
2. Create your feature branch (git checkout -b new-feature)
3. Commit your changes (git commit -am 'Add feature')
4. Push to the branch (git push origin new-feature)
5. Create a new Pull Request

• Typescript.
• Styled with emotion.

Huge thanks to BrowserStack for the Open Source License!

Distributed under the MIT license. See LICENSE for more information.

Prabhu Murthy – @prabhumurthy2 – prabhu.m.murthy@gmail.com https://github.com/prabhuignoto

Thanks goes to these wonderful people (emoji key):

Alois 📖	Koji 📖	Alexandre Girard 💻	Ryuya 📖	Taqi Abbas 💻	megasoft78 💻	Eric（书生） 💻
Christophe Bernard 💻

This project follows the all-contributors specification. Contributions of any kind welcome!
