BackstopJS

BackstopJS automates visual regression testing of your webapp – comparing screenshots over time.

News

Backstop 6.3.2 -- now with support for Node 20 Many thanks to @dgrebb for this doozy of a maintainance release!

EmberJS users -- check out our ember-backstop test helper! https://github.com/garris/ember-backstop

Want to learn how to Backstop from a pro? Check out visual regression testing with BackstopJS on udemy.com by Walmyr Filho

Backstop Features

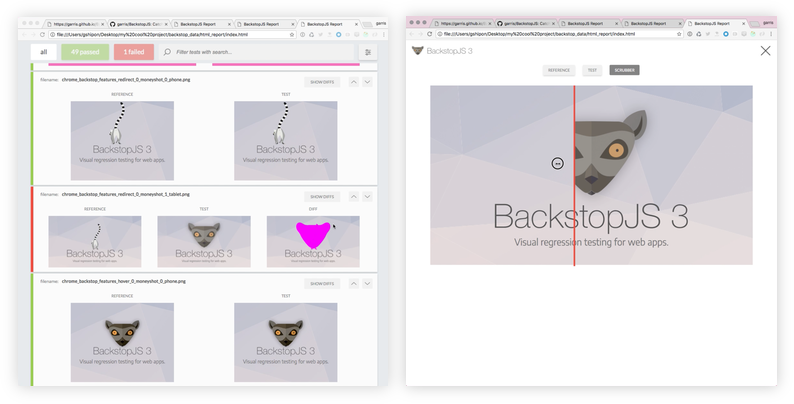

In-browser reporting UI with...
- layout settings for print and screen
- scenario display filtering
- reference, test, visual diff inspector
- cool scrubber thingy
- approving a test

Integrated Docker rendering -- to eliminate cross-platform rendering shenanigans
CLI reports
Render tests with Chrome Headless
Simulate user interactions with Playwright or Puppeteer scripts
JUnit reports
Plays nice with CI and source control
Run globally or locally as a standalone package app or require('backstopjs') right into your node app
Incredibly easy to use: just 3 commands go a long long way!

Install BackstopJS Now

npm install -g backstopjs

The BackstopJS Workflow

backstop init: Set up a new BackstopJS instance -- specify URLs, cookies, screen sizes, DOM selectors, interactions etc. (see examples directory)
backstop test: BackstopJS creates a set of test screenshots and compares them with your reference screenshots. Any changes show up in a visual report. (Run this after making CSS changes as many times as needed.)
backstop approve: If the test you ran looks good, then go ahead and approve it. Approving changes will update your reference files with the results from your last test. Future tests are compared against your most recent approved test screenshots.

Getting Started

Installation

Global Installation (Recommended)

npm install -g backstopjs

Local Installation

BackstopJS will run as a totally stand alone app -- but installing locally allows you to do this...

const backstop = require('backstopjs');

See Integration Options to learn about cool BackstopJS integration options!

Initializing Your Project

If you don't already have BackstopJS set up... BackstopJS can create a default configuration file and project scaffolding in your current working directory. Please note: this will overwrite any existing files!

cd to your project's directory and run...

backstop init

Working with Your Config File

By default, BackstopJS places backstop.json in the root of your project. And also by default, BackstopJS looks for this file when invoked.

Pass a --config=<configFilePathStr> argument to test using a different config file.

JS based config file

You may use a javascript based config file to allow comments in your config. Be sure to export your config object as a node module.

Example: Create a backstop.js

module.exports = { Same object as backstop.json }

and then backstop test --config="backstop.js"

Required Config Properties

As a new user setting up tests for your project, you will be primarily concerned with these properties...

id – Used for screenshot naming. Set this property when sharing reference files with teammates -- otherwise omit and BackstopJS will auto-generate one for you to avoid naming collisions with BackstopJS resources.
viewports – An array of screen size objects your DOM will be tested against. Add as many as you like -- but add at least one.
scenarios – This is where you set up your actual tests. The important sub properties are...
- scenarios[n].label – Required. Also used for screenshot naming.
- scenarios[n].url – Required. Tells BackstopJS what endpoint/document you want to test. This can be an absolute URL or local to your current working directory.

Tip

No other SCENARIO properties are required. Other properties can just be added as necessary.

Generating Test Bitmaps

backstop test

This will create a new set of bitmaps in bitmaps_test/<timestamp>/

Once the test bitmaps are generated, a report comparing the most recent test bitmaps against the current reference bitmaps will display.

Pass a --filter=<scenarioLabelRegex> argument to just run scenarios matching your scenario label.

Tip

The --filter argument offers a useful shortcut for re-running a single test or failed tests.

Pass a --docker flag to render your test in a Docker container -- this will help with consistency if you are attempting to compare references across multiple environments.

Approving Changes

backstop approve

When running this command, all images (with changes) from your most recent test batch will be promoted to your reference collection. Subsequent tests will be compared against your updated reference files.

Pass a --filter=<image_filename_regex> argument to promote only the test captures matching your scenario filename. The filenames (which by default include scenario and viewport names) are displayed in the visual and cli reports.

Tip

Remember to pass a --config=<configFilePathStr> argument if you passed that when you ran your last test.

Using BackstopJS

Scenario Properties

Scenario properties, which may be global, are described throughout this document and processed sequentially in the following order...

Property	Description
`label`	[required] Tag saved with your reference images
`onBeforeScript`	Used to set up browser state e.g. cookies.
`cookiePath`	Import cookies in JSON format (available with default onBeforeScript, see setting cookies below)
`url`	[required] The URL of your app state
`referenceUrl`	Specify a different state or environment when creating reference.
`readyEvent`	Wait until this string has been logged to the console.
`readySelector`	Wait until this selector exists before continuing.
`readyTimeout`	Timeout for readyEvent and readySelector (default: 30000ms)
`delay`	Wait for x milliseconds
`hideSelectors`	Array of selectors set to visibility: hidden
`removeSelectors`	Array of selectors set to display: none
`onReadyScript`	After the above conditions are met -- use this script to modify UI state prior to screenshots, e.g., hovers, clicks, etc.
`keyPressSelectors`	Takes an array of selectors and string values -- simulates multiple sequential keypress interactions.
`hoverSelector`	Move the pointer over the specified DOM element prior to the screenshot.
`hoverSelectors`	Playwright and Puppeteer only takes an array of selectors -- simulates multiple sequential hover interactions.
`clickSelector`	Click the specified DOM element prior to the screenshot.
`clickSelectors`	Playwright and Puppeteer only takes an array of selectors -- simulates multiple sequential click interactions.
`postInteractionWait`	Wait for a selector after interacting with hoverSelector or clickSelector (optionally accepts wait time in ms). Ideal for use with a click or hover element transition. Available with default onReadyScript.
`scrollToSelector`	Scrolls the specified DOM element into view prior to the screenshot (available with default onReadyScript).
`selectors`	Array of selectors to capture. Defaults to document if omitted. Use "viewport" to capture the viewport size. See Targeting elements in the next section for more info...
`selectorExpansion`	See Targeting elements in the next section for more info...
`misMatchThreshold`	Percentage of different pixels allowed to pass the test
`requireSameDimensions`	If set to true -- any change in selector size will trigger a test failure.
`viewports`	An array of screen size objects your DOM will be tested against. This configuration will override the viewports property assigned at the config root.
`gotoParameters`	An array of settings passed to page.goto(url, parameters) function.

Global Scenario Properties

One may opt to include any of the above properties at the "global" level, in the scenarioDefaults configuration object.

Expand Example

{
  "id": "backstop_playwright",
  "viewports": [
    {
      "label": "phone",
      "width": 320,
      "height": 480
    },
    {
      "label": "tablet",
      "width": 1024,
      "height": 768
    }
  ],
  "onBeforeScript": "playwright/onBefore.js",
  "onReadyScript": "playwright/onReady.js",
  "scenarioDefaults": {
    "cookiePath": "backstop_data/engine_scripts/cookies.json",
    "url": "https://garris.github.io/BackstopJS/",
    "readySelector": "",
    "delay": 0,
    "hideSelectors": [".getItBlock"],
    "removeSelectors": [".logoBlock"],
    "hoverSelector": "",
    "clickSelector": "",
    "postInteractionWait": 1000,
    "selectors": [],
    "selectorExpansion": true,
    "misMatchThreshold" : 0.1,
    "requireSameDimensions": true
  },
  "scenarios": [
    {
      "label": "BackstopJS Homepage",
      "cookiePath": "backstop_data/engine_scripts/cookies.json",
      "url": "https://garris.github.io/BackstopJS/",
      "referenceUrl": "",
      "readyEvent": "",
      "readySelector": "",
      "delay": 0,
      "hoverSelector": "",
      "clickSelector": "",
      "selectors": [],
      "selectorExpansion": true,
      "misMatchThreshold" : 0.1,
      "requireSameDimensions": true
    }
  ],
  "paths": {
    "bitmaps_reference": "backstop_data/bitmaps_reference",
    "bitmaps_test": "backstop_data/bitmaps_test",
    "engine_scripts": "backstop_data/engine_scripts",
    "html_report": "backstop_data/html_report",
    "ci_report": "backstop_data/ci_report"
  },
  "report": ["browser"],
  "engine": "playwright",
  "engineOptions": {
    "args": ["--no-sandbox"]
  },
  "asyncCaptureLimit": 5,
  "asyncCompareLimit": 50,
  "debug": false,
  "debugWindow": false,
  "archiveReport": true,
  "scenarioLogsInReports": true
}

Important

Global configuration is overridden at the scenario level. A scenario with selectors: [] set as an empty array will yield zero selectors. E.g. scenarioDefaults.selectors: [".fancy", ".global", ".classes"] will be set to [], as scenario.selectors takes precedence.

Advanced Scenarios

Testing Click and Hover Interactions

BackstopJS ships with an onReady script that enables the following interaction selectors...

clickSelector: ".my-hamburger-menu",
hoverSelector: ".my-hamburger-menu .some-menu-item",

The above would tell BackstopJS to wait for your app to generate an element with a .my-hamburger-menu class, then click that selector. Then it would wait again for a .my-hamburger-menu .some-menu-item class, then move the cursor over that element (causing a hover state). Then BackstopJS would take a screenshot.

You can use these properties independent of each other to easily test various click and or hover states in your app. These are obviously simple scenarios -- if you have more complex needs then this example should serve as a pretty good starting point create your own onReady scripts.

Note

Playwright and Puppeteer versions optionally take clickSelectors & hoverSelectors as arrays of selectors...

clickSelectors: [".my-hamburger-menu",".my-hamburger-item"],
hoverSelectors: [".my-nav-menu-item",".my-nav-menu-dropdown-item"],

Key Press Interactions

BackstopJS ships with an onReady script that allows user to key press on selectors...

Note

Supports both Playwright and Puppeteer and takes arrays of selectors and key press values.

scenarios: [
  {
    "keyPressSelectors": [
      {
        "selector": "#email",
        "keyPress": "marcdacz@backstopjs.com"
      },
      {
        "selector": "#password",
        "keyPress": "1234"
      }
    ]
  }
]

Setting Cookies

BackstopJS ships with an onBefore script that makes it easy to import cookie files…

cookiePath: "backstop_data/engine_scripts/cookies.json",

Note

Path is relative to your current working directory.

Tip

If you want an easy way to manually export cookies from your browser then download this browser extension. You can directly use the output cookie files with BackstopJS.

Targeting Elements

BackstopJS makes it super easy to capture screenshots of your entire layout or just parts of your layout. This is defined in your scenario.selectors array. Elements are defined with standard CSS notation. By default BackstopJS takes a screenshot of the first occurrence of any selector found in your DOM. e.g. If you have three li tags in your layout only the first will used.

`selectorExpansion`

If you want BackstopJS to find and take screenshots of all matching selector instances then there is a handy switch for that. Set selectorExpansion to true like so...

scenarios: [
  {
    "selectors": [
      ".aListOfStuff li"
    ],
    "selectorExpansion": true
  }
]
// captures all <li> tags inside .aListOfStuff

(Default behavior) If you want very explicit control of what you capture then you can disable selectorExpansion and explicitly select what you want...

scenarios: [
  {
    "selectors": [
      ".aListOfStuff li"
    ],
    "selectorExpansion": false
  }
]
// Just captures the first <li> tag inside .aListOfStuff

`expect`

When working with selector expansion(set selectors in selectors properties and set selectorExpansion to true), you might want to explicitly set the number of results that you expect to find by the selectors. Set expect in the scenario to a number which is greater than 0, then the test will fail for the scenario if the number of selected result does not match the expect number.

scenarios: [
  {
    "selectors": [
      ".aListOfStuff li"
    ],
    "selectorExpansion": true,
    "expect": 5
  }
]
// captures all <li> tags inside .aListOfStuff, and make sure the number of <li> tags is 5

(Default behavior) If you don't care the number of the selected elements, just set expect to 0 or not set the property.

scenarios: [
  {
    "selectors": [
      ".aListOfStuff li"
    ],
    "selectorExpansion": false,
    "expect": 0
  }
]
// Captures all <li> tags inside .aListOfStuff, and not check the number of <li> tags

Testing Progressive Apps, SPAs, and Ajax Content

It is very common for client-side web apps is to initially download a small chunk of bootstrapping code/content/state and render it to the screen as soon as it arrives at the browser. Once this has completed, various JS components often take over to progressively load more content/state.

The problem testing these scenarios is knowing when to take the screenshot. BackstopJS solves this problem with two config properties: readySelector, readyEvent and delay.

Trigger Screen Capture Via Selector

The readySelector property tells BackstopJS to wait until a selector exists before taking a screenshot. For example, the following line will delay screen capture until a selector with the id '#catOfTheDayResult' is present somewhere in the DOM.

"readySelector": "#catOfTheDayResult"

Another approach might look like this...

"readySelector": "body.ember-has-rendered"

Trigger Screen Capture Via `console.log()`

The readyEvent property enables you to trigger the screen capture by logging a predefined string to the console. For example, the following line will delay screen capture until your web app calls console.log("backstopjs_ready")...

"readyEvent": "backstopjs_ready"

In the above case it would be up to you to wait for all dependencies to complete before calling logging "backstopjs_ready" string to the console.

Delay Screen Capture

The delay property enables you to pause screen capturing for a specified duration of time. This delay is applied after readyEvent (if also applied).

"delay": 1000 //delay in ms

In the above case, BackstopJS would wait for one second before taking a screenshot.

In the following case, BackstopJS would wait for one second after the string backstopjs_ready is logged to the console.

{
  // ...
  "readyEvent": "backstopjs_ready",
  "delay": 1000 //delay in ms
  // ...
}

Dealing With Dynamic Content

For obvious reasons, this screenshot approach is not optimal for testing live dynamic content. The best way to test a dynamic app would be to use a known static content data stub – or ideally many content stubs of varying lengths which, regardless of input length, should produce certain specific bitmap output.

Hiding Selectors

That said, for a use case where you are testing a DOM with say an ad banner or a block of dynamic content which retains static dimensions, we have the hideSelectors property in capture/config.json which will set the corresponding DOM to visibility:hidden, thus hiding the content from our Resemble.js analysis but retaining the original layout flow.

"hideSelectors": [
  "#someFixedSizeDomSelector"
]

Removing Selectors

There may also be elements which need to be completely removed during testing. For that we have removeSelectors which removes them from the DOM before screenshots.

"removeSelectors": [
  "#someUnpredictableSizedDomSelector"
]

Capturing Browser Console Logs

Sometimes you need a little more information to debug misbehavior. If that information is in the browser console logs, it won't appear in a screenshot. To capture the browser console logs along with the screenshots, set scenarioLogsInReports. ( Note: In order to view the logs, you will have to serve the reports from an HTTP server. See Interactive Web Reporting below.)

"scenarioLogsInReports": true

Changing Test Sensitivity

"misMatchThreshold" (percentage 0.00%-100.00%) will change the amount of difference BackstopJS will tolerate before marking a test screenshot as "failed". The default setting is 0.1, this may need to be adjusted based on the kinds of testing you're doing.

More info on how misMatchThreshold is derived can be found here... https://github.com/Huddle/Resemble.js/blob/af57cb2f4edfbe718d24b350b2be1d956b764298/resemble.js#L495

"requireSameDimensions" (true || false) will change whether BackstopJS will accept any change in dimensions. The default setting is true. If set to true then the test must be the same dimensions as the reference. If set to false the test does not have to be the same dimensions as the reference.

This setting can be used in conjunction with "misMatchThreshold", for example, when setting a "misMatchThreshold" of more than 0.00% and the mismatch causing a change in dimensions, setting "requireSameDimensions" to false will allow the test to still pass, setting it to true would still make it fail.

Capturing the entire document or just the viewport, or just an element, or a combination.

BackstopJS recognizes two magic selectors: document and viewport -- these capture the entire document and just the current specified viewport respectively. e.g.

"scenarios": [
  {
    "selectors": [
      "document",
      "viewport",
      "#myFeature",
      // ...
    ],
     // ...
  }
]

Comparing Different Endpoints (e.g. comparing staging and production)

Pointing to different endpoints is easy. (e.g. to compare a production environment against a staging environment).

You can create reference files (without previewing) by using the command backstop reference. By default this command calls the url property specified in your config. Optionally, you can add a referenceUrl property to your scenario configuration. If found, BackstopJS will use referenceUrl for screen grabs when running backstop reference.

"scenarios": [
  {
    "label": "cat meme feed sanity check",
    "url": "http://www.moreCatMemes.com",
    "referenceUrl": "http://staging.moreCatMemes.com:81",
    // ...
  }
]

Running Custom Scripts

Simulate user actions (click, scroll, hover, wait, etc.) or states (cookie values) by running your own script on ready. For each scenario, the custom .js file you specify is imported and run when the BackstopJS ready events are fulfilled.

From your project root, place your scripts in...

./backstop_data/engine_scripts

at the root of your config or in your scenario...

"onReadyScript": "filename.js"   // Runs after onReady event on all scenarios -- use for simulating interactions (.js suffix is optional)
"onBeforeScript": "filename.js"  // Runs before each scenario -- use for setting cookies or other env state (.js suffix is optional)
"scenarios": [
  {
    "label": "cat meme feed sanity check",
    "onReadyScript": "filename.js"   //  If found will run instead of onReadyScript set at the root (.js suffix is optional)
    "onBeforeScript": "filename.js" // If found will run instead of onBeforeScript at the root (.js suffix is optional)
     // ...
  }
]

Inside filename.js, structure it like this:

// onBefore example (puppeteer engine)
module.exports = async (page, scenario, vp, isReference) => {
  await require('./loadCookies')(page, scenario);

  // Example: set user agent
  await page.setUserAgent('some user agent string here');

};

// onReady example (puppeteer engine)
module.exports = async (page, scenario, vp) => {
  console.log('SCENARIO > ' + scenario.label);
  await require('./clickAndHoverHelper')(page, scenario);

  // Example: changing behavior based on config values
  if (vp.label === 'phone') {
    console.log( 'doing stuff for just phone viewport here' );
  }

  // add more stuff here...
};

Setting the base path for custom `onBefore` and `onReady` scripts

By default, the base path is a folder called engine_scripts inside your BackstopJS installation directory. You can override this by setting the paths.scripts property in your backstop.json file to point to somewhere in your project directory (recommended).

"paths": {
  "engine_scripts": "backstop_data/engine_scripts"
}

`onBeforeScript`/`onReadyScript` available variables

`onBefore(page, scenario, viewport, isReference, Engine, config)``

Variable	Description
`page`	Browser page object
`scenario`	Currently running scenario config
`viewport`	Viewport info
`isReference`	Whether the scenario contains a reference URL property
`Engine`	Static class reference (Puppeteer/Playwright)
`config`	The whole config object

Reporting Workflow Tips

One testing approach to consider is incorporating BackstopJS into your build process and just let the CLI report run on each build or before each deploy.

It's natural for your layout to break while you're in feature development -- in that case you might just run a backstop test when you feel things should be shaping up.

Use the report property in your config to enable or disable the respective properties. E.g. the following settings will open a browser and write a junit report.

"report": ["browser", "CI"]

You can also specify a json report:

"report": ["json"]

If you choose the CI-only reporting or even no reporting (CLI is always on) you can always enter the following command to see the latest test run report in the browser.

backstop openReport

Test report integration with a build system like Jenkins/Travis

The following config would enable the CI - report (default: junit format)

"report" : [ "CI" ],

The regression test report will be generated in the JUnit format and the report will be placed in the given directory (default: [backstopjs dir]/test/ci_report/xunit.xml).

You may customize the testsuite name and/or a report file (xunit.xml) path to your build report directory by using the below configuration overrides,

"paths": {
  "ci_report" :  "backstop_data/ci_report"
},
"ci": {
  "format" :  "junit" ,
  "testReportFileName": "myproject-xunit", // in case if you want to override the default filename (xunit.xml)
  "testSuiteName" :  "backstopJS"
},

Interactive Web Reporting

Backstop web reports support approving scenarios and viewing browser logs generated by each scenario. To enable these features you will need to run the backstop remote HTTP service in another terminal window...

BACKSTOP_REMOTE_HTTP_PORT=3000 backstop remote --config=<your config>

Tip

The command above needs to be running before you open the report, so that Backstop detects it automatically. By default Backstop will open a report after running backstop test. Additionally reports can always be opened by running backstop openReport. Also have a look at Reporting workflow tips.

Tip

To stop the remote server, you can either hit Ctrl-C or GET the http://<backstopHost>/stop/ endpoint.

BackstopJS and CLI Return Values

Tip

When run on the command line, the BackstopJS process will return a 0 if tests were successful and a 1 if anything failed. So you always have the flexibility of branching way up high in your CLI if needed -- e.g....

node ./backstopjs/cli/ test  && echo 'passed' || echo 'failed'

CLI Error Handling

When a layout error is found in CLI mode, BackstopJS will let you know in a general report displayed in the console. In addition, BackstopJS will return a 1 (error) to the calling CLI process.

Setting The Bitmap And Script Directory Paths

By default, BackstopJS saves generated resources into the backstop_data directory in parallel with your backstop.json config file. The location of the various resource types are configurable so they can easily be moved inside or outside your source control or file sharing environment. See below for options...

Tip

These file paths are relative to your current working directory.

  ...
  "paths": {
    "bitmaps_reference": "backstop_data/bitmaps_reference",
    "bitmaps_test": "backstop_data/bitmaps_test",
    "engine_scripts": "backstop_data/engine_scripts",
    "html_report": "backstop_data/html_report",
    "json_report": "backstop_data/json_report",
    "ci_report": "backstop_data/ci_report",
  }
  ...

Changing The Rendering Engine

Both Puppeteer and Playwright are installed by default, though the default configuration is set to Puppeteer.

Chrome-Headless (The latest webkit library)

To use chrome headless you can currently use puppeteer (https://github.com/GoogleChrome/puppeteer).

"engine": "puppeteer"

Playwright

To use firefox or webkit, you can currently use playwright (https://github.com/microsoft/playwright).

Be sure to also switch the onBefore and onReady scripts to the Playwright defaults. Playwright supports setting engineOptions.browser to chromium, firefox, or webkit.

The storageState config property is supported via the engineOptions object in backstop config. This sets cookies and localStorage variables in the Playwright engine before tests are run. Very useful taking screenshots of pages that require authentication.

  ...
  "onBeforeScript": "playwright/onBefore.js",
  "onReadyScript": "playwright/onReady.js",
  ...
  "engine": "playwright"
  ...
  "engineOptions": {
    "browser": "chromium",
    "storageState": "/path/to/cookies-and-local-storage-file.json"
  }
  ...

Setting Puppeteer And Playwright Option Flags

Backstop sets two defaults for both Puppeteer and Playwright:

ignoreHTTPSErrors: true,
headless: <!!!config.debugWindow>

You can add more settings (or override the defaults) with the engineOptions property. (properties are merged). This is where headless mode can also be set to 'new', until "new headless mode" is less hacky and more supported by Playwright.

[!INFORMATION] Puppeteer now runs in new headless mode by default, but can be set to old headless by passing "headless": true in the configuration file.

"engineOptions": {
  "ignoreHTTPSErrors": false,
  "args": ["--no-sandbox", "--disable-setuid-sandbox"],
  "headless": "new",
  "gotoParameters": { "waitUntil": "networkidle0" },
}

More info here:

Using Docker For Testing Across Different Environments

We've found that different environments can render the same webpage in slightly different ways -- in particular with text. E.G. see the text in this example rendering slightly differently between Linux and Mac...

You can make this issue go away by rendering in a BackstopJS Docker container. Lucky for you we've made it incredibly easy to do.

First, go ahead and install docker on your machine from the Docker Downloads Page.

Make sure Docker is running on your machine. On MacOS there is a menu item that looks like this...

Then, simply add a --docker flag onto your commands. E.G...

backstop test --docker

or for a local install

const backstop = require('backstopjs');
backstop('test', {docker: true});

The above flag will cause BackstopJS to hit your Docker local client, spin up a BackstopJS container from https://hub.docker.com/r/backstopjs/backstopjs/ and execute your test. By default, Backstop will attemt to use a Docker image with the same version number specified in your package.js.

Changing The Default Docker Command

If the default docker command or image does not work for you, you can customize the command to run BackstopJS with Docker by changing the dockerCommandTemplate config option. The default is:

"dockerCommandTemplate": "docker run --rm -it --mount type=bind,source=\"{cwd}\",target=/src backstopjs/backstopjs:{version} {backstopCommand} {args}"

To improve security and prevent ownership problems of the generated files it is recommended to configure the used dockerCommandTemplate to use a user which does match your environment, for example to run it on linux with your current user and group id you could use that template:

"dockerCommandTemplate": "docker run --rm -it --user $(id -u):$(id -g) --mount type=bind,source=\"{cwd}\",target=/src backstopjs/backstopjs:{version} {backstopCommand} {args}"

Tip

To run BackstopJS in Docker in an environment where the output is piped (e.g. CI server or an IDE's output window), remove the -t parameter (change the default to "docker run --rm -i --mount...)

Requirements for when you're using docker...

If you are using a config generated prior to version 3.5 and you get an error like this...

  COMMAND | Command "test" ended with an error after [0.312s]
  COMMAND | Error: Failed to launch chrome!
            ... Running as root without --no-sandbox is not supported. See https://crbug.com/638180.
            TROUBLESHOOTING: https://github.com/GoogleChrome/puppeteer/blob/master/docs/troubleshooting.md

then you need to add this to the root of your config...

"engineOptions": {
    "args": ["--no-sandbox"]
},

localhost won't work in your scenarios -- instead, mac and win users can use host.docker.internal e.g.
```
"url": "https://host.docker.internal/?someCoolAppParameter=true"
```

Integration Options (Local Install)

Installing BackstopJS locally to your project makes a few integration options available.

Using Backstop as a locally installed standalone app looks like this....

# Install from your project root
npm install backstopjs

# Then, run commands by directly calling the cli
./node_modules/.bin/backstop test --config=<myConfigPath>

The more interesting case is calling backstop from another node app...

const backstop = require('backstopjs');

Invoke default behavior in the current working directory context

backstop('test')
  .then(() => {
    // test successful
  }).catch(() => {
    // test failed
  });

Pass options to the command

backstop('test', {config:'custom/backstop/config.json'});

Pass a config object to the command

// you can also pass a literal object
backstop('test', {
  config: {
    id: "foo",
    scenarios: [
      //some scenarios here
    ]
  }
});

The `--filter` argument still works too -- just pass a `filter` prop instead.

// you can also pass a literal object
backstop('test', {
  filter: 'someScenarioLabelAsRegExString',
  config: {
    id: "foo",
    scenarios: [
      //some scenarios here
    ]
  }
});

Parse a config file explicitly

backstop('test', {
  config: require("./backstop.js")({
    "foo": "bar"
  })
});


// Inside of `backstop.js` we export a function that returns the configuration object
module.exports = options => {
  return {
    //you can access options.foo here
  }
}

Since the backstop returns promises so it can run natively as a task in build systems like gulp

const gulp = require('gulp');
const backstop = require('backstopjs');

gulp.task('backstop_reference', () => backstop('reference'));
gulp.task('backstop_test', () => backstop('test'));

Using `npm run` Scripts

When BackstopJS is installed locally, NPM will recognize the backstop <command> pattern originating from your own npm package.json scripts. The following would enable you to run the respective npm <command> commands locally in your project.

"scripts": {
  "approve": "backstop approve",
  "test": "backstop test",
  "init": "backstop init"
}

The above is a basic example -- check out the NPM documentation for more info.

Tuning BackstopJS Performance

During a test, BackstopJS processes image capture and image comparisons in parallel. You can adjust how much BackstopJS does at one time by changing

Capturing Screens In Parallel

By default, this value is limited to 10. This value can be adjusted as needed to increase/decrease the amount of RAM required during a test.

The example below would capture 5 screens at a time...

asyncCaptureLimit: 5

Comparing Screens In Parallel

By default, this value is limited to 50. This value can be adjusted as needed to increase/decrease the amount of RAM required during a test.

As a (very approximate) rule of thumb, BackstopJS will use 100MB RAM plus approximately 5 MB for each concurrent image comparison.

To adjust this value add the following to the root of your config...

"asyncCompareLimit": 100
// Would require 600MB to run tests. Your mileage most likely will vary ;)

Creating Reference Files

This Utility command will by default delete all existing screen references and create new ones based on the referenceUrl or url config config. It will not run any file comparisons.

Use this when you...

create references from another environment (e.g. staging vs prod)
or clean out your reference files and start fresh with all new reference
or just create references without previewing

From your project directory...

backstop reference

optional parameters --config=<configFilePath> point to a specific config file --filter=<scenario.name> filter on scenario.name via regex string --i incremental flag -- use if you don't want BackstopJS to first delete all files in your reference directory

Modifying Output Settings Of Image-Diffs

By specifying resembleOutputOptions in your backstop.json file you can modify the image-diffs transparency, errorcolor, etc. (See Resemble.js outputSettings for the full list.)

Instead of calling resemble`s ignoreAntialiasing(), you may set it as a property in the config. (See example)

Per default, Backstop uses Resemble's misMatchPercentage value. However, this value only detects mismatches above 0.01%. If you need more precision and want to use a misMatchThreshold below 0.01 (e.g. for large screenshots or small changes), you can set usePreciseMatching in the resembleOutputOptions. (See example)

"resembleOutputOptions": {
  "errorColor": {
    "red": 255,
    "green": 0,
    "blue": 255
  },
  "errorType": "movement",
  "transparency": 0.3,
  "ignoreAntialiasing": true
}

Git Integration

For most users, it can be helpful to keep a record of reference files over the long haul -- but saving multiple test screenshots is probably overkill. So, just like checking-in your unit tests with your production code you can similarly check in your Backstop reference files with your production code.

For many users, adding these lines to your .gitignore or .git/info/exclude files will pare down your backstop files in a sensible way.

backstop_data/html_report/
bitmaps_test/

Of course you can alternatively change your default config to save these files somewhere else out of the source control scope -- thats cool too.

Changing Screenshot Filename Formats

One of the things Backstop does for you is manage all your screenshot files. Backstop uses a specific file-naming scheme to make this work. Changing this scheme is of course NOT RECOMMENDED. That said -- if you have an overwhelming need, then you can modify this behavior using the fileNameTemplate property. The default pattern is shown below where the labels in braces are replaced with internal values during runtime.

{
  // ...
  fileNameTemplate: '{scenarioIndex}_{scenarioLabel}_{selectorIndex}_{selectorLabel}_{viewportIndex}_{viewportLabel}',
  // ...
}

Developing, Bug Fixing, Contributing...

First off, You are awesome! Thanks for your interest, time and hard work! Here are some tips...

We use `eslint-config-semistandard`.

Please run the linter before each submit, as follows. Thank you. 🙇🏽

npm run lint -- --fix

HTML Report Development

Warning

Here be dragons. Webpack, React, and other dependency updates are in progress.

Here's some suggestions if you want to work on the HTML report locally...

The HTML front end is a React app. It lives in /compare/src/
The workflow is as follows from the backstopjs root
- Start a remote server if you need to work with the approving tests flow
```
cd test/configs/ && node ../../cli/index.js remote
```
- Open another shell and run a test with this...
```
npm run sanity-test
```
- Your test report should display as designed.
- Then, make your UI changes and build with this...
```
npm run build-and-copy-report-bundle
```
  - No need to rerun a test, just refresh the browser window to view your UI changes.
  - Repeat the process until you're done.
  - When you are done, check it in and include the bundle as part of the checkin.

Note

👆 As a convenience, npm run build-and-copy-report-bundle copies your newly built React bundle into test/configs/backstop_data/html_report/ so you can then test your changes by simply refreshing your report in chrome.

Docker Development

Want to make sure your changes work with the --docker option? You can rebuild your local docker image from your current BackstopJS source. From your BackstopJS root...

Building and Testing Locally

tl;dr

npm run init-docker-builder
customize ./docker/Dockerfile
npm run build-docker
npm run build-and-load-docker

Details

The Docker image is created via `npm run build-docker`, which uses a custom docker builder, created via `npm run init-docker-builder`. This ensures the Docker image can run on multiple platform architectures (M1 vs. Inteal Macs for example). [Read more](https://docs.docker.com/build/building/multi-platform/ "Docker Documentation)) about this.

Because BackstopJS's Docker image is created with a custom `docker buildx` builder, one must "load" the image into their local registry. This is where `npm run build-and-load-docker` comes in handy.

Publishing to Container Registries

If you have access to Docker Hub @backstop/backstop, then this command will push a new public BackstopJS docker image with the current version tag...

npm run push-docker

There are various other ways one can publish to ghcr.io, .ecr..amazonaws.com etc. but those are beyond the scope of this README.

SMOKE & FEATURE TESTS

See the next section for running the SMOKE TEST -- Please make sure this is working before submitting any PR's. Thanks!

# From root directory
# ---------------
# simple test
  npm run sanity-test-docker

# longer test covering many features
  npm run smoke-test-docker

# Or another way to test...

# From test/configs/ directory
# ---------------
# simple test
  ../../cli/index.js test --config=backstop --docker
# longer test covering many features
  ../../cli/index.js test --config=backstop_features --docker

Troubleshooting

SANITY TEST: Does Backstop work in my environment?

Run the following command from your Desktop, home or project directory to check that Backstop will install and run in your environment. Please make sure you have node version 8 or above. Windows users: Powershell is recommended.

mkdir backstopSanityTest; cd backstopSanityTest; mkdir node_modules; npm install backstopjs; ./node_modules/.bin/backstop init; ./node_modules/.bin/backstop reference; ./node_modules/.bin/backstop test

Here is a sanity test which also uses docker...

mkdir backstopSanityTest; cd backstopSanityTest; mkdir node_modules; npm install backstopjs; ./node_modules/.bin/backstop init; ./node_modules/.bin/backstop reference --docker; ./node_modules/.bin/backstop test --docker

SMOKE TEST: Are backstop features working ok?

Run this command if you have made changes to the BackstopJS codebase and you want to make sure that you haven't broken anything.

    # from the backstopjs directory
    npm run smoke-test

Debugging

You have the option of displaying the Chrome window as tests are running. This will allow you to visually see your app state at the time of your test. To enable use...

"debugWindow": true

When debugWindow is enabled on macOS, the system may show many firewall popups. This is because Puppeteer's Chromium application is not code-signed. As the exact steps to work around this may change with different macOS versions, see [problem] Mac OS Firewall popup on every launch of puppeteer #4752 until this is fixed upstream. As of macOS Monterey 12.4, these steps are the most current to run.

For all engines there is also the debug setting. This enables verbose console output.This will also output your source payload to the terminal so you can make sure to check that the server is sending what you expect. 😉

"debug": true

Issues with Chrome-Headless in Docker

Please keep in mind, Chrome-Headless will need a lot of memory. Take a look at these if you are seeing weird timeout errors with Docker...

#603 (comment)

#537 (comment)

Interaction: Clicking A Link That Loads A New Page

This is a grey area for BackstopJS. When you click a link to a new page inside of Chrome headless then you are unloading all your current app state and starting fresh with a new app state. If this is your case, the best practice is to simply create a new BackstopJS scenario with the required URL state etc. If you have some kind of situation which really requires this kind of behavior then it's doable -- take a look at this issue for inspiration... #657

Chrome Zombies!

Sometimes when developing scripts -- browser errors can actually cause Chrome-Headless to lose their special connection to each other. If you find that Chrome zombies are accumulating in your ENV spacetime continuum then please follow these steps:

DON’T PANIC!
Remain calm.

do the following...

MacOS and Linux users can run...

pkill -f "(chrome)?(--headless)"

Windows users can run... (in PowerShell)

Get-CimInstance Win32_Process -Filter "Name = 'chrome.exe' AND CommandLine LIKE '%--headless%'" | %{Stop-Process $_.ProcessId}

The dreaded: command-not-found error...

Did you install BackstopJS with the global option? If installing globally remember to add that -g when installing with npm i.e. npm install -g backstopjs. If you installed locally, remember that the backstop <command> pattern will only be available to your npm scripts -- see the local installation section above for more info.

Issues When Installing

Sometimes bad permissions happen to good people. It's ok, this is a safe space. Hopefully this will help... #545

Projects don't work when I share with other users or run in different environments.

Be sure to use a config id in your config file. See #291

Tutorials, Extensions and More

A cool overview article by Adrien Lemaire -- Overview of BackstopJS, a tool to test a web application’s UI
Another by Adrien Lemaire Check this if you are interested in Continuous Integration (CI)! A journey in Continuous Integration Testing
Angela Riggs is a pioneer in the Visual Testing space and leader in cultivating a culture of quality for software teams. Read about it here and here and listen to her talk here
Check out Marc Dacanay's BackstopJS articles -- he has a great intro as well as some great in-depth tips.
Here is a cool project template for static sites by Walmyr Filho @wlsf82 https://twitter.com/walmyrlimaesilv
Here is an online course about visual regression testing with BackstopJS by Walmyr Filho
A really good one on refactoring CSS with BackstopJS by Hannes Käufler
A Simple grunt-backstopjs plugin - For the Grunt enthusiasts

Credits

BackstopJS was created and is maintained by Garris Shipon with help from these amazing engieers.

🙇 Special thanks to these contributors...

BackstopJS

News

Backstop Features

Install BackstopJS Now

Contents

The BackstopJS Workflow

Getting Started

Installation

Global Installation (Recommended)

Local Installation

Initializing Your Project

Working with Your Config File

Required Config Properties

Generating Test Bitmaps

Approving Changes

Using BackstopJS

Scenario Properties

Global Scenario Properties

Advanced Scenarios

Testing Click and Hover Interactions

Key Press Interactions

Setting Cookies

Targeting Elements

selectorExpansion

expect

Testing Progressive Apps, SPAs, and Ajax Content

Trigger Screen Capture Via Selector

Trigger Screen Capture Via console.log()

Delay Screen Capture

Dealing With Dynamic Content

Hiding Selectors

Removing Selectors

Capturing Browser Console Logs

Changing Test Sensitivity

Capturing the entire document or just the viewport, or just an element, or a combination.

Comparing Different Endpoints (e.g. comparing staging and production)

Running Custom Scripts

Setting the base path for custom onBefore and onReady scripts

onBeforeScript/onReadyScript available variables

Reporting Workflow Tips

Test report integration with a build system like Jenkins/Travis

Interactive Web Reporting

BackstopJS and CLI Return Values

CLI Error Handling

Setting The Bitmap And Script Directory Paths

Changing The Rendering Engine

Chrome-Headless (The latest webkit library)

Playwright

Setting Puppeteer And Playwright Option Flags

Using Docker For Testing Across Different Environments

Changing The Default Docker Command

Requirements for when you're using docker...

Integration Options (Local Install)

Invoke default behavior in the current working directory context

Pass options to the command

Pass a config object to the command

The --filter argument still works too -- just pass a filter prop instead.

Parse a config file explicitly

Since the backstop returns promises so it can run natively as a task in build systems like gulp

Using npm run Scripts

Tuning BackstopJS Performance

Capturing Screens In Parallel

Comparing Screens In Parallel

Creating Reference Files

Modifying Output Settings Of Image-Diffs

Git Integration

Changing Screenshot Filename Formats

Developing, Bug Fixing, Contributing...

We use eslint-config-semistandard.

HTML Report Development

Docker Development

Building and Testing Locally

Publishing to Container Registries

SMOKE & FEATURE TESTS

Troubleshooting

SANITY TEST: Does Backstop work in my environment?

SMOKE TEST: Are backstop features working ok?

Debugging

Issues with Chrome-Headless in Docker

Interaction: Clicking A Link That Loads A New Page

`selectorExpansion`

`expect`

Trigger Screen Capture Via `console.log()`

Setting the base path for custom `onBefore` and `onReady` scripts

`onBeforeScript`/`onReadyScript` available variables

The `--filter` argument still works too -- just pass a `filter` prop instead.

Using `npm run` Scripts

We use `eslint-config-semistandard`.

BacktopJS

BacktopJS
