VMPrint

I built the layout engine so you don't have to.

VMPrint is a layout engine. Not a PDF library. Not a renderer. A layout engine: the component that decides where every glyph goes, negotiates page breaks, resolves mutual spatial dependencies between dynamic regions, and produces a flat array of exact X/Y coordinates for every box and text run in the document.

What you do with that output is your call: render to PDF, replay on a Canvas, drive a word processor's display layer, feed it to a WebGL pipeline. The engine's job ends when the math is done.

The architecture is backed by a pending patent. The core insight: document layout is a deterministic spatiotemporal simulation, not a pipeline. Document elements are autonomous actors inhabiting a persistent world coordinate space. Pages are viewport projections over that world; they are not containers that content gets assigned into. Actors negotiate geometry with their neighbors, publish committed facts when their placement settles, and other actors observe those facts and respond, all within a single forward simulation pass. The output is captured when the world reaches equilibrium.

That is not a metaphor. It is the literal execution model. It is why things that require multiple passes in every other system, such as a table of contents that needs accurate page numbers or a dynamic region that depends on sibling geometry, resolve correctly in one pass here.

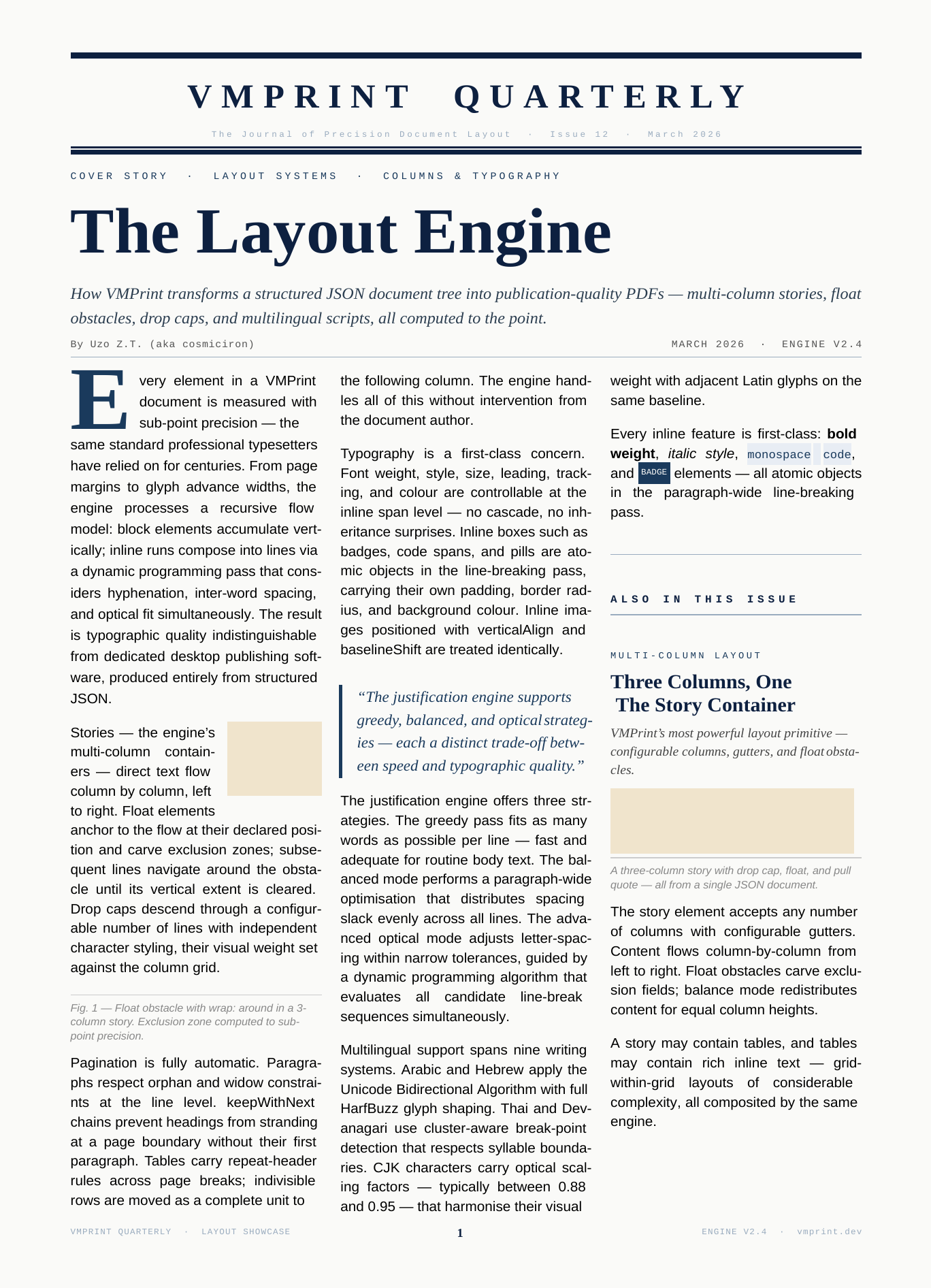

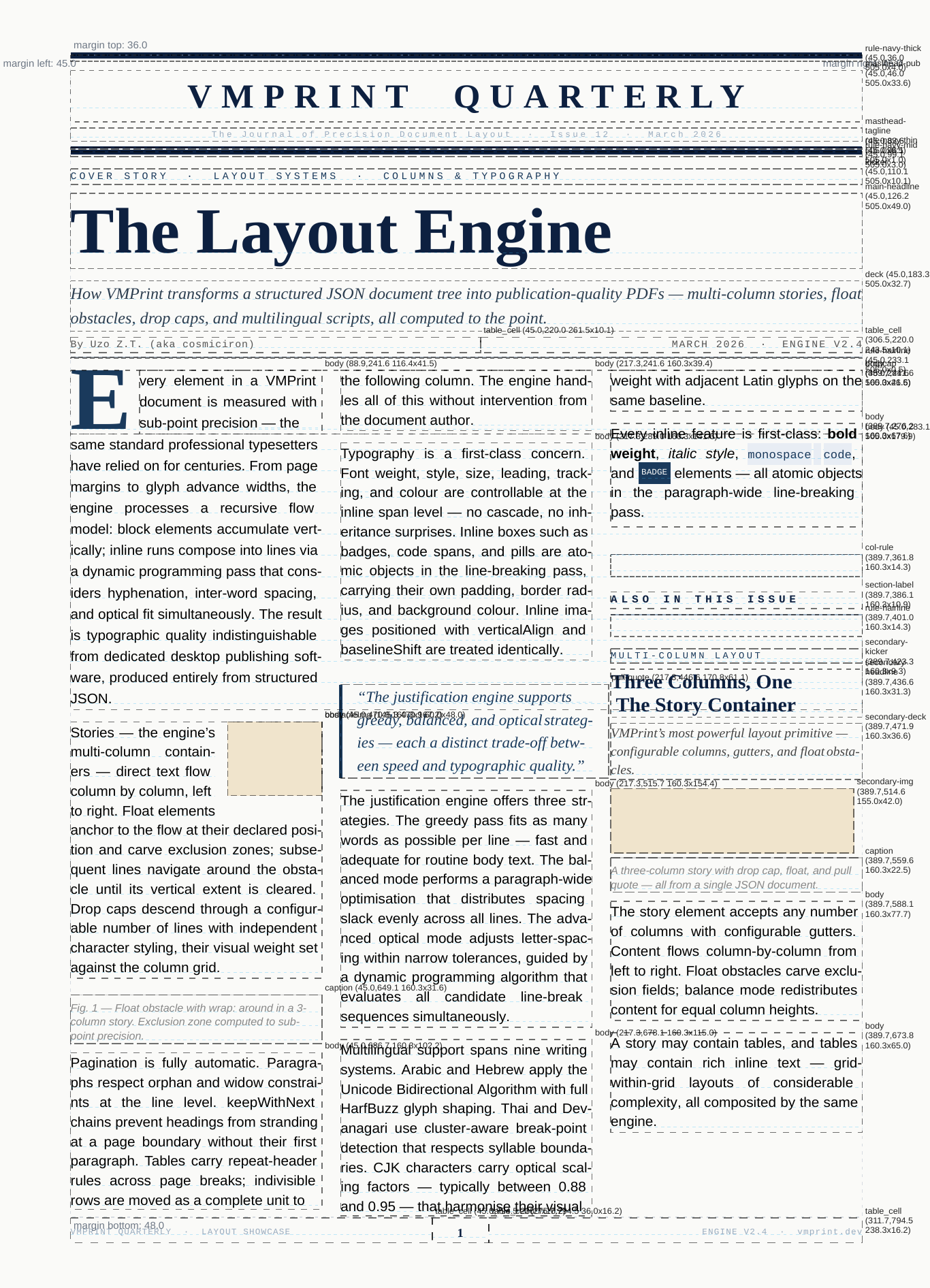

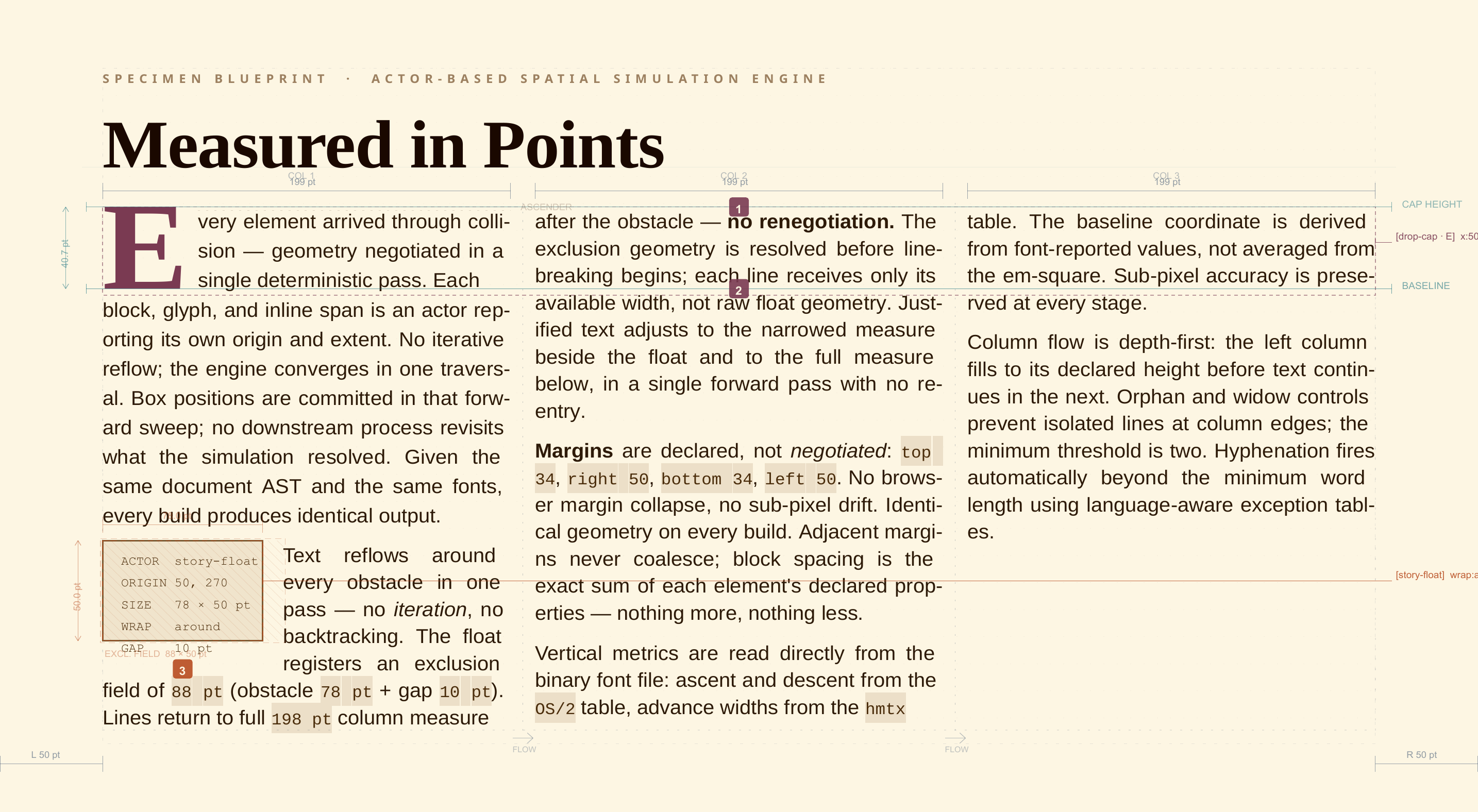

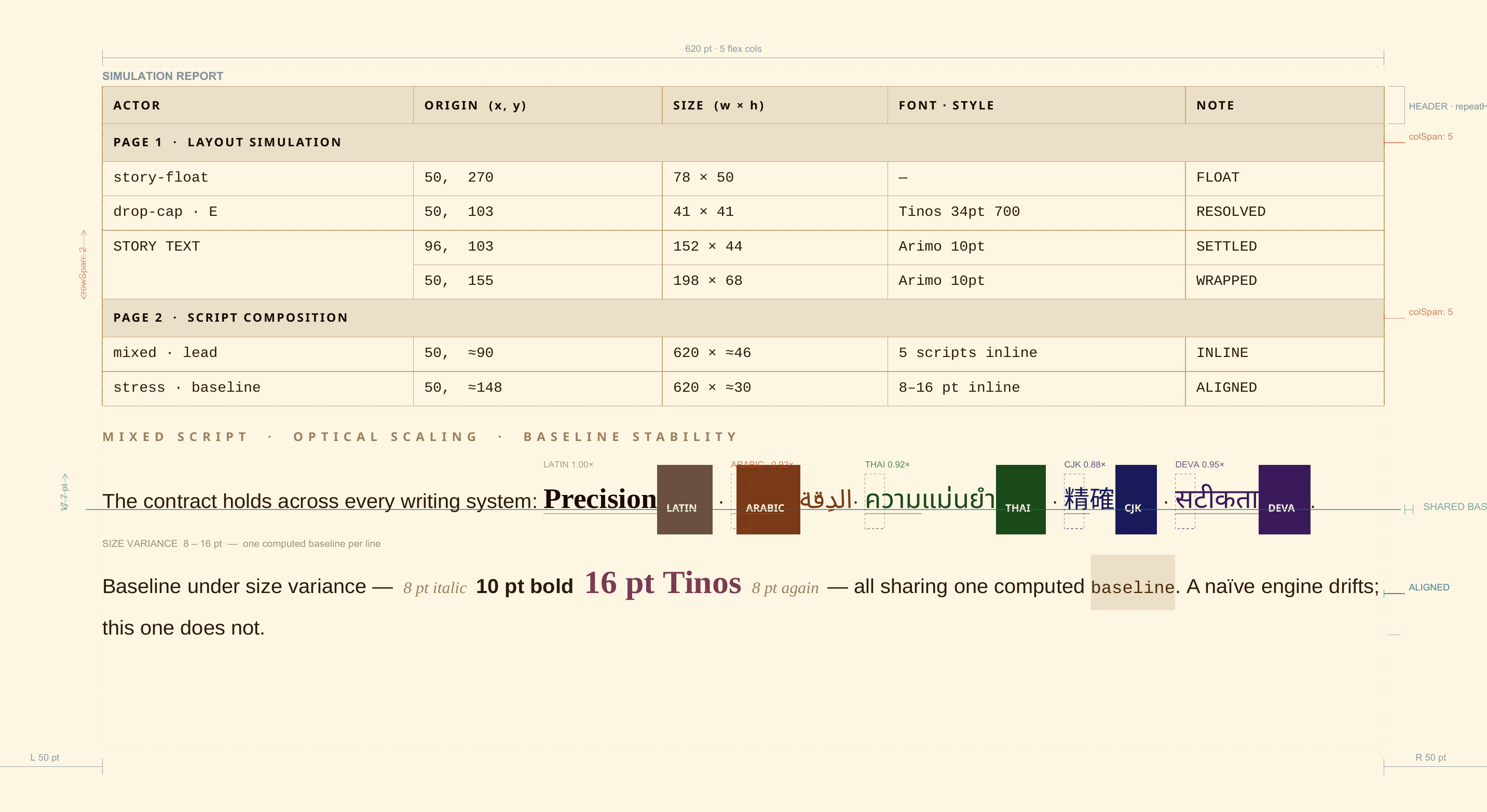

Left: rendered output. Right: the same document with --debug; every actor boundary and box labeled. The layout is fully inspectable data.

Who needs a layout engine

Canvas and WebGL tool builders. Teams building Figma-class apps, infinite whiteboards, or data visualization platforms have typically abandoned the DOM and render everything through Canvas, WebGL, or WebGPU. When a user types Arabic text or mixes scripts, a naive word-wrap breaks. VMPrint acts as a typographic microservice: hand it a JSON document with text, fonts, and bounding constraints; get back a flat array of exact glyph X/Y coordinates per line. You draw. VMPrint does the math.

High-volume report generators. FinTech, LegalTech, and MedTech platforms generating thousands of complex PDFs per day: financial audits, personalized contracts, localized dossiers. The default approach, spinning up headless Chrome via Puppeteer, requires a full browser process per worker: roughly 300 MB RAM, hundreds of milliseconds of cold-start overhead, subprocess privilege, and cost that scales linearly with concurrency. VMPrint runs inside your existing Node.js process or V8 isolate. 326 pages, warm: 718 ms. No browser. No subprocess.

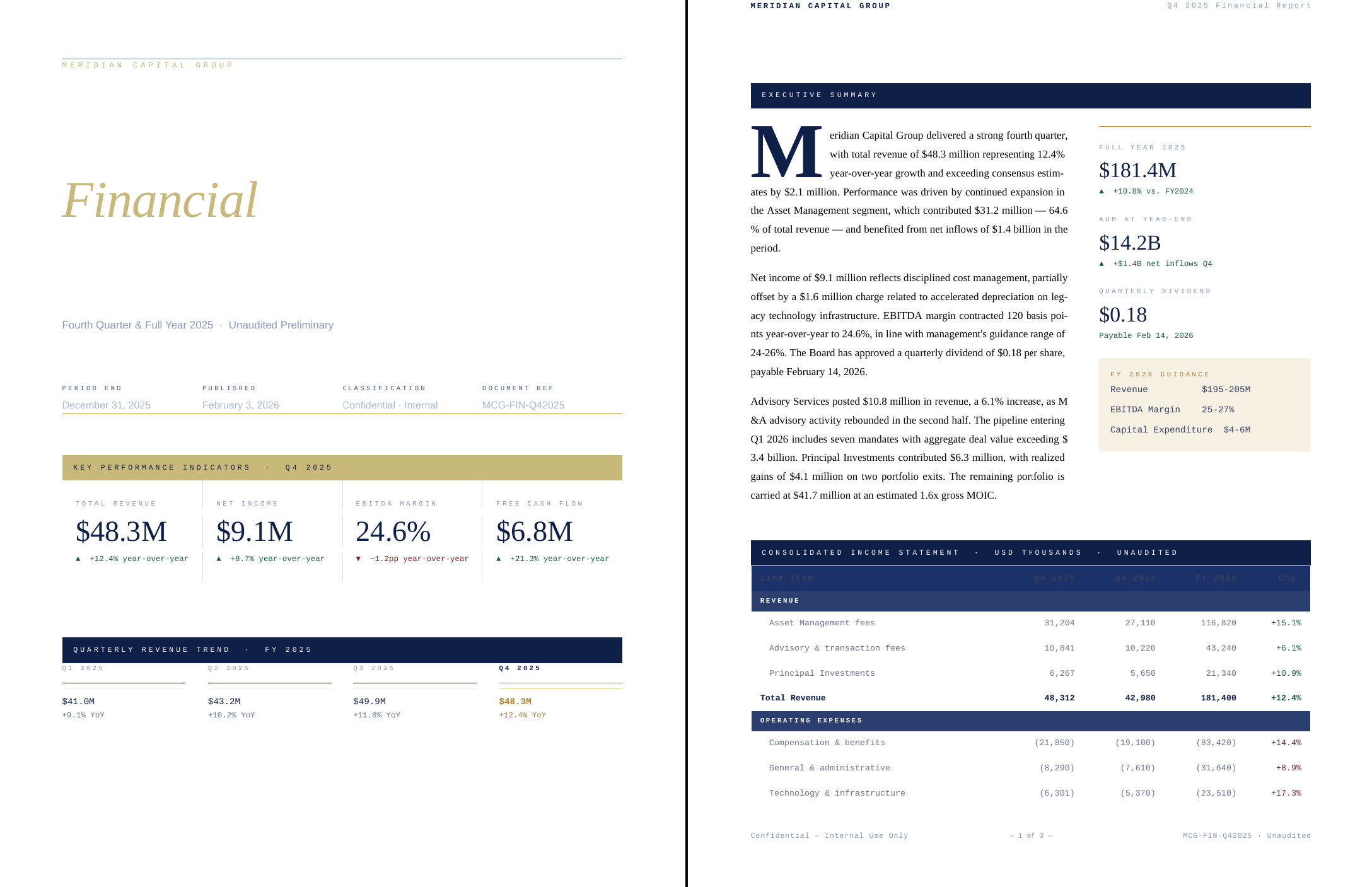

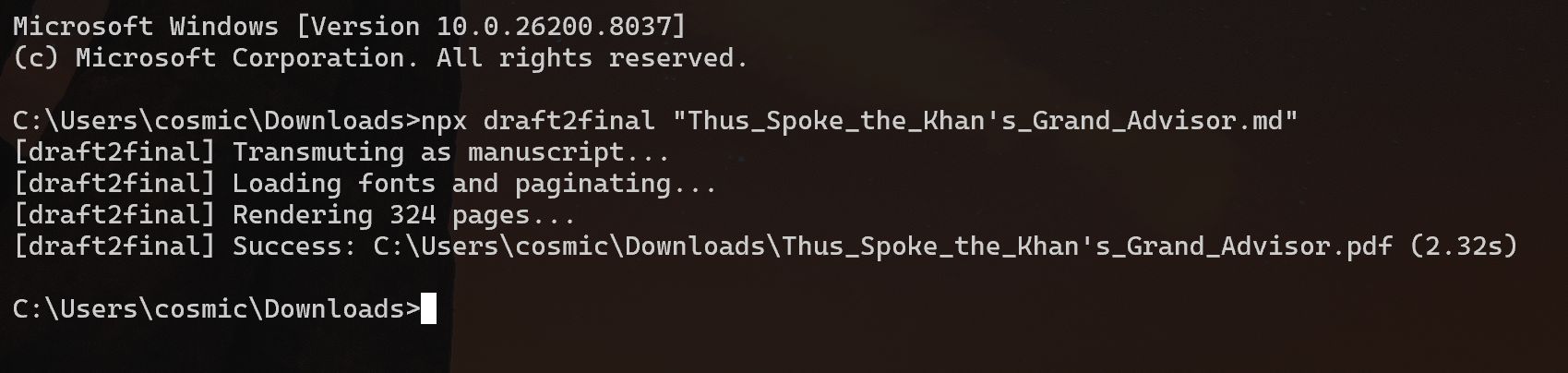

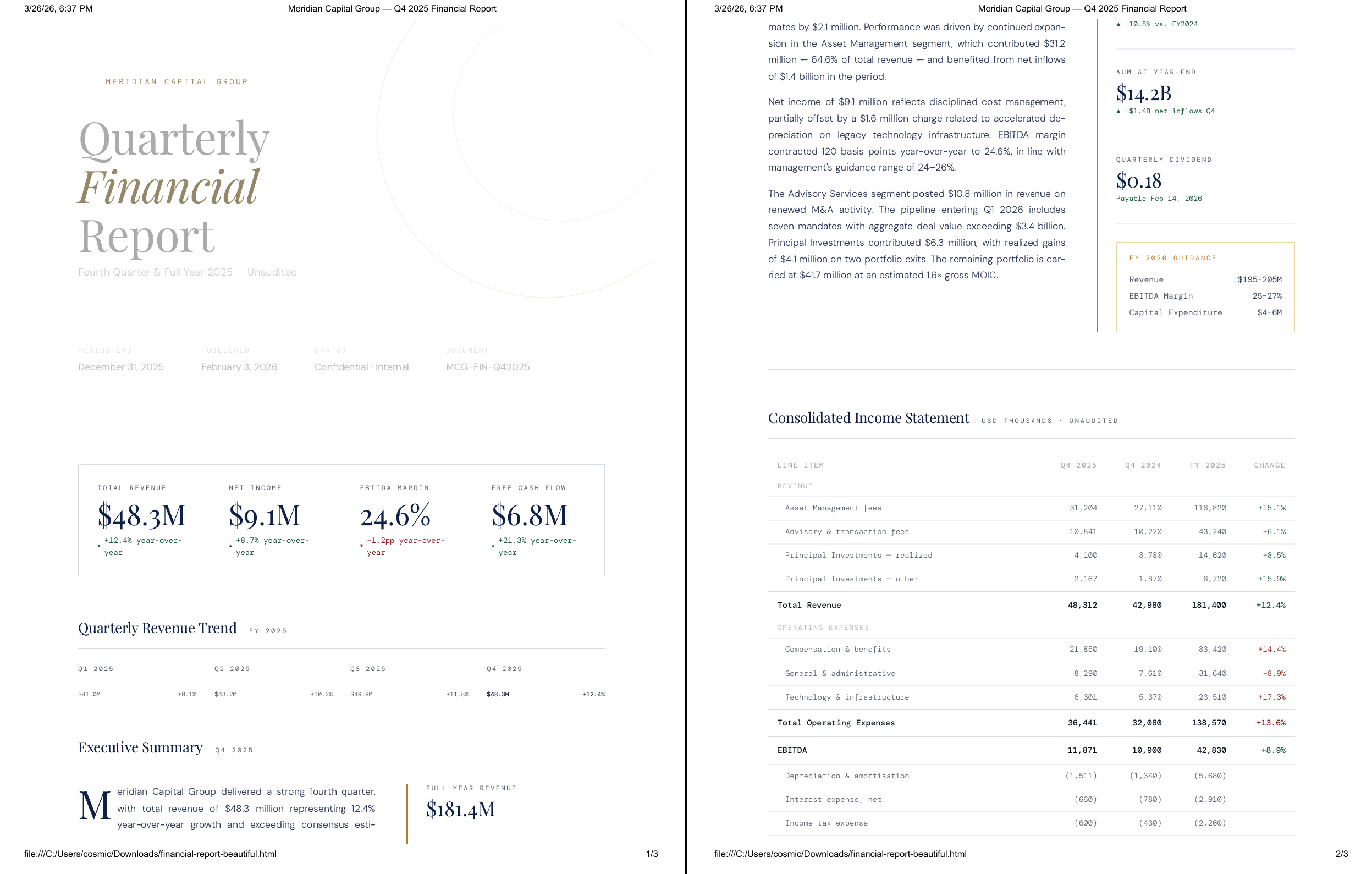

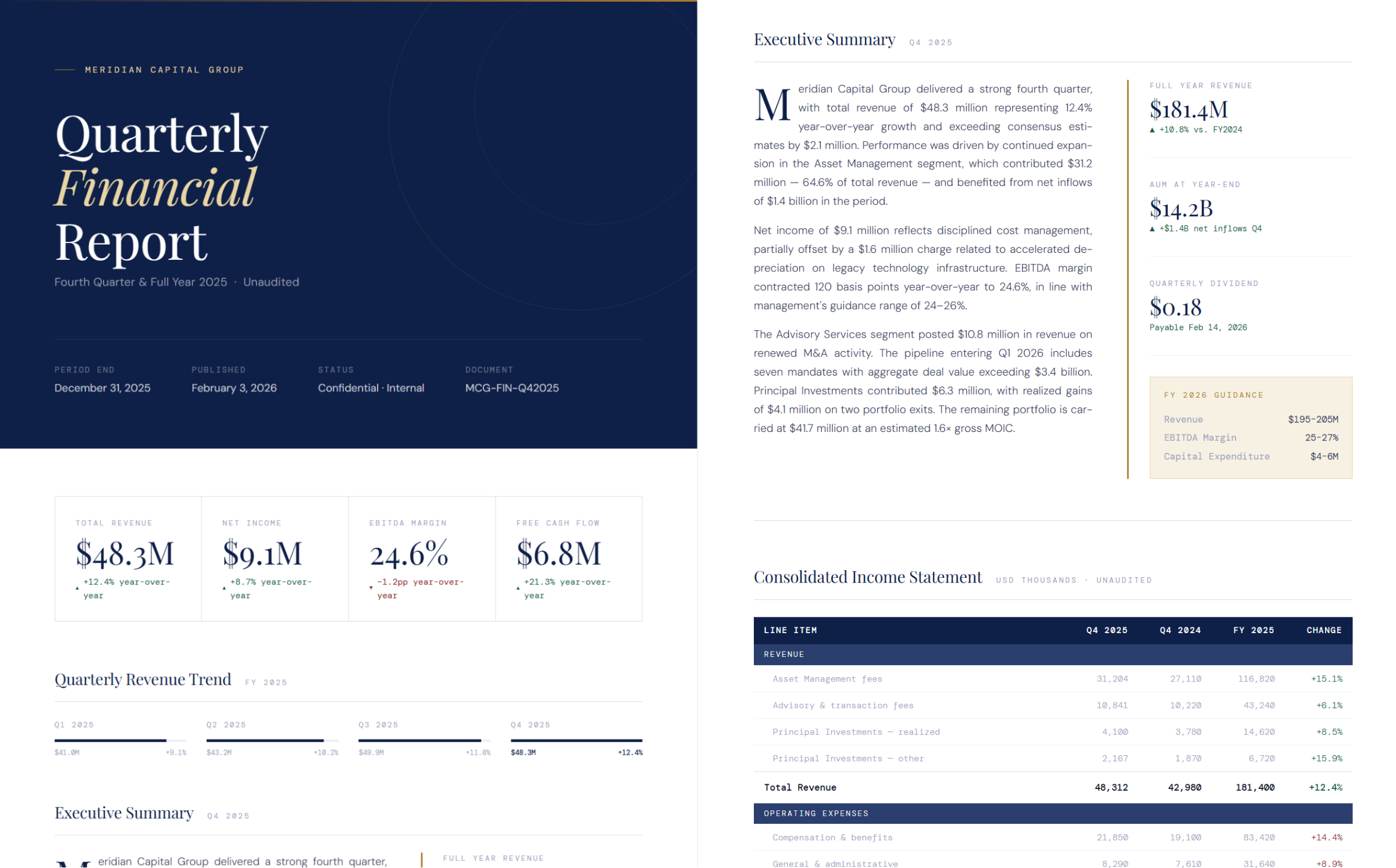

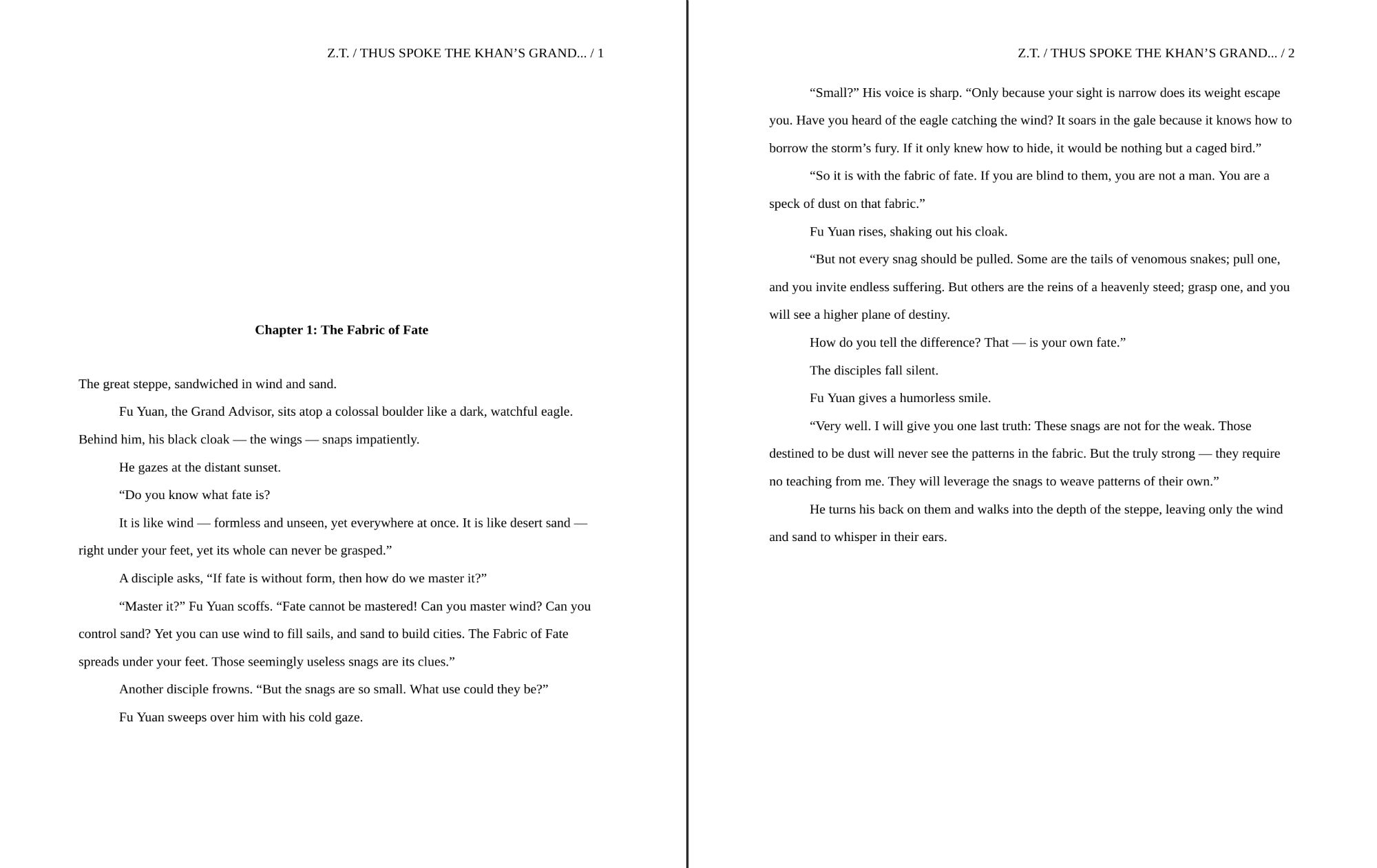

Left: financial report output. Right: 324-page manuscript, Markdown to PDF, end-to-end in 2.32s.

Print-on-demand and automated publishing. Photobook generators, catalog compilers, automated textbook systems, and direct-mail platforms. CSS @page and break-inside: avoid remain unreliable across browsers. VMPrint is deterministic: page 42 is page 42 on every machine, every OS, every run. Pagination is a first-class physical constraint resolved by a simulation engine, not a browser heuristic.

Word processor and document editor builders. Teams building collaborative editors, screenwriting tools, academic paper editors, or SOP builders. contenteditable gives you no programmatic layout state. You cannot ask the DOM where line 3 ends without expensive range measurements. VMPrint gives you the layout as inspectable data: every line break, every page break, mathematically determined, available as a flat JSON structure you can diff, serialize, and replay. More than that, VMPrint knows where every individual glyph is and what it is. Accurate cursor placement, text selection, and hit-testing are not afterthoughts; they fall out of the layout data directly.

Edge runtime and serverless. Deploying to Cloudflare Workers, Deno Deploy, or Lambda@Edge where headless Chrome is impossible: no subprocess, tight bundle limits, no native binary dependency story. VMPrint is pure TypeScript with no native shaping dependency and no binary requirement. It runs in a V8 isolate.

What it does that prior systems cannot

Single-pass TOC, index, and bibliography. A table of contents must know page numbers before it can render, but the page numbers of subsequent content depend on how much space the TOC occupies. Every prior system resolves this through a second layout pass, an approximation, or external auxiliary files. VMPrint resolves it in one pass: heading actors emit committed signals as their geometry settles; the TOC actor observes those signals within the same running simulation and assembles accurate entries. The numbers are exact. There is no second pass.

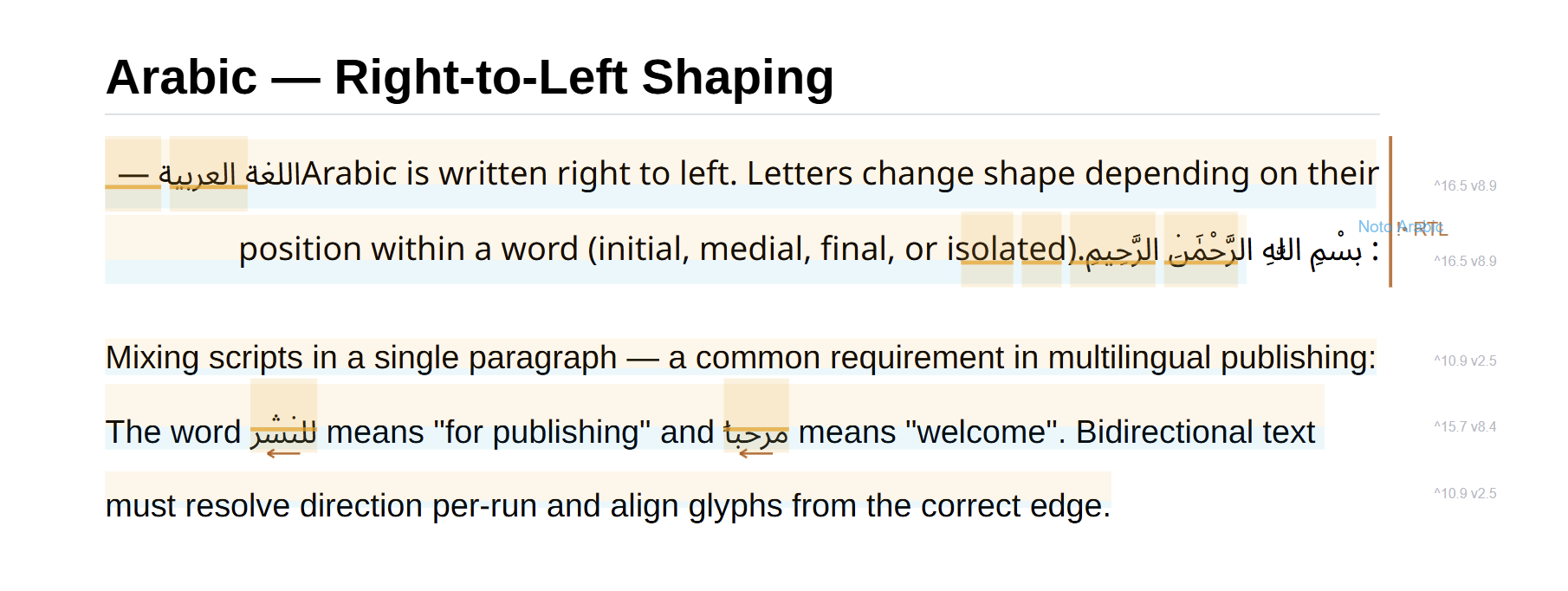

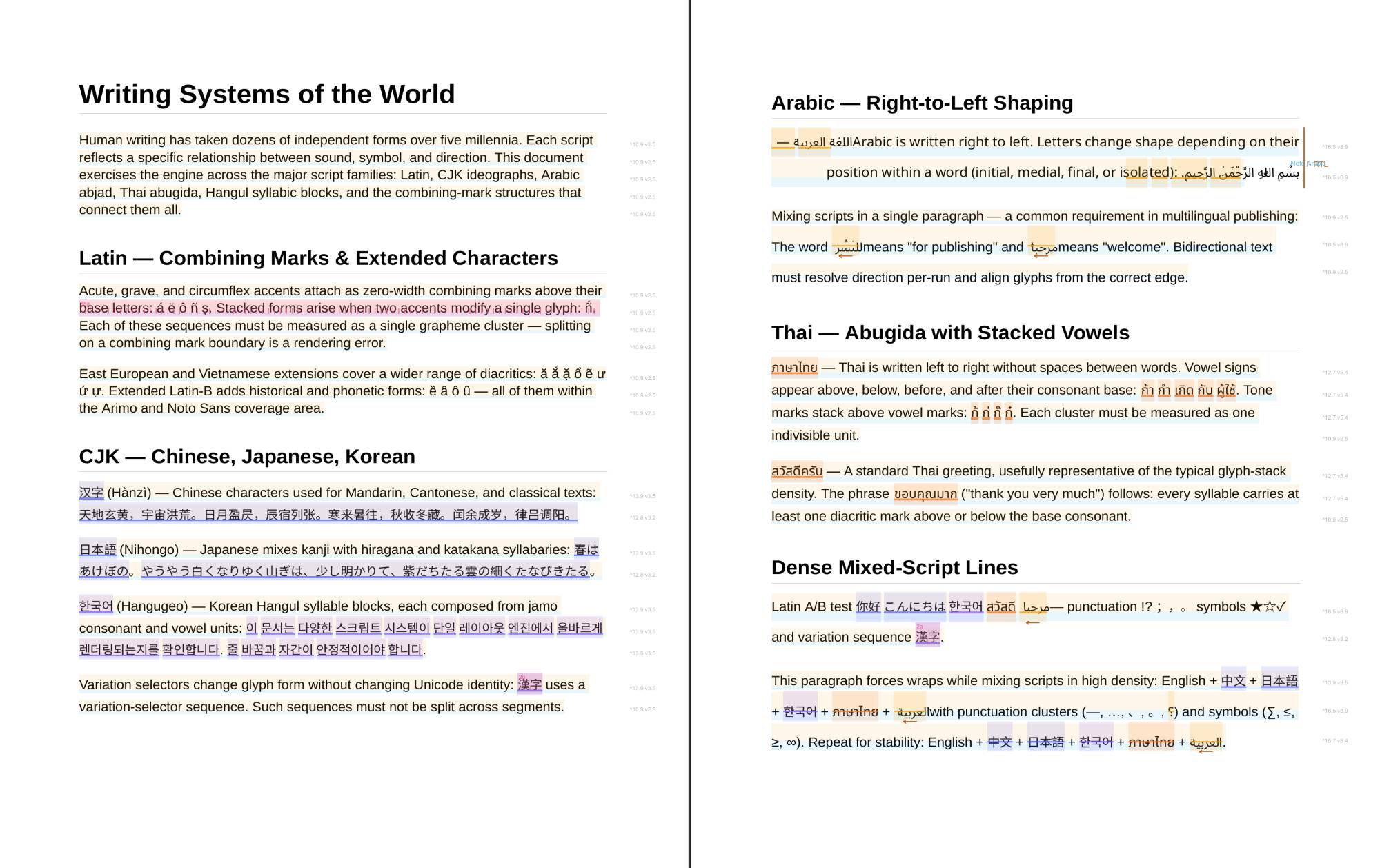

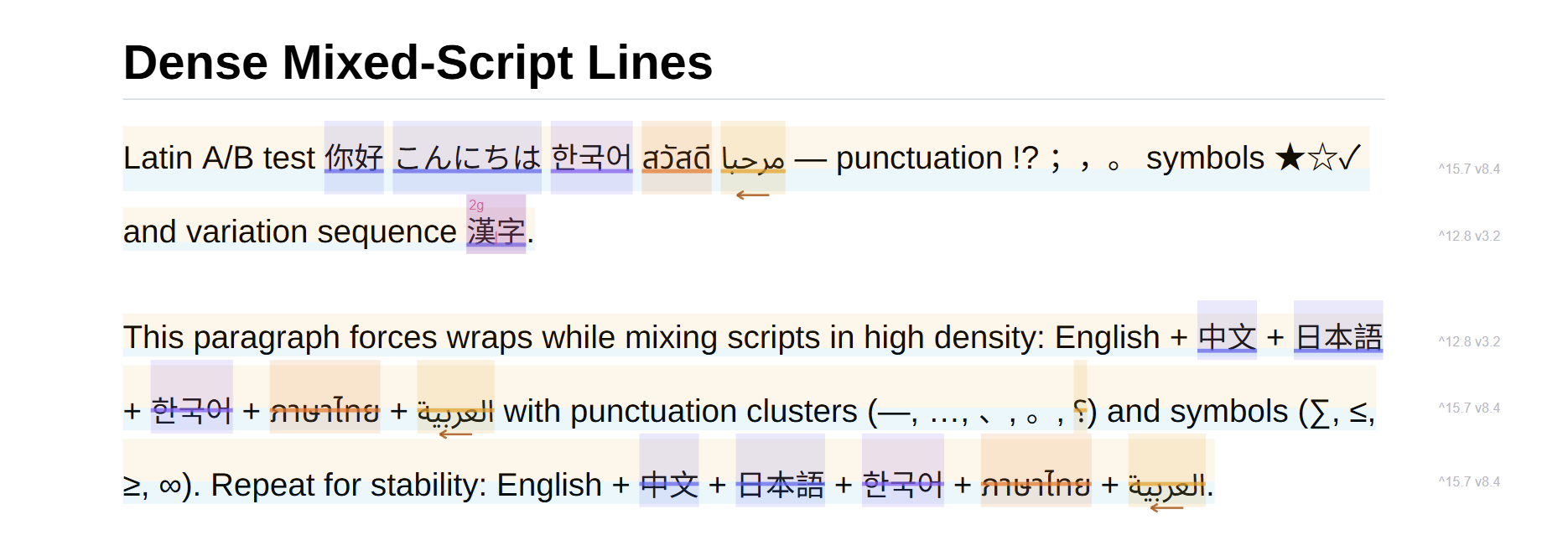

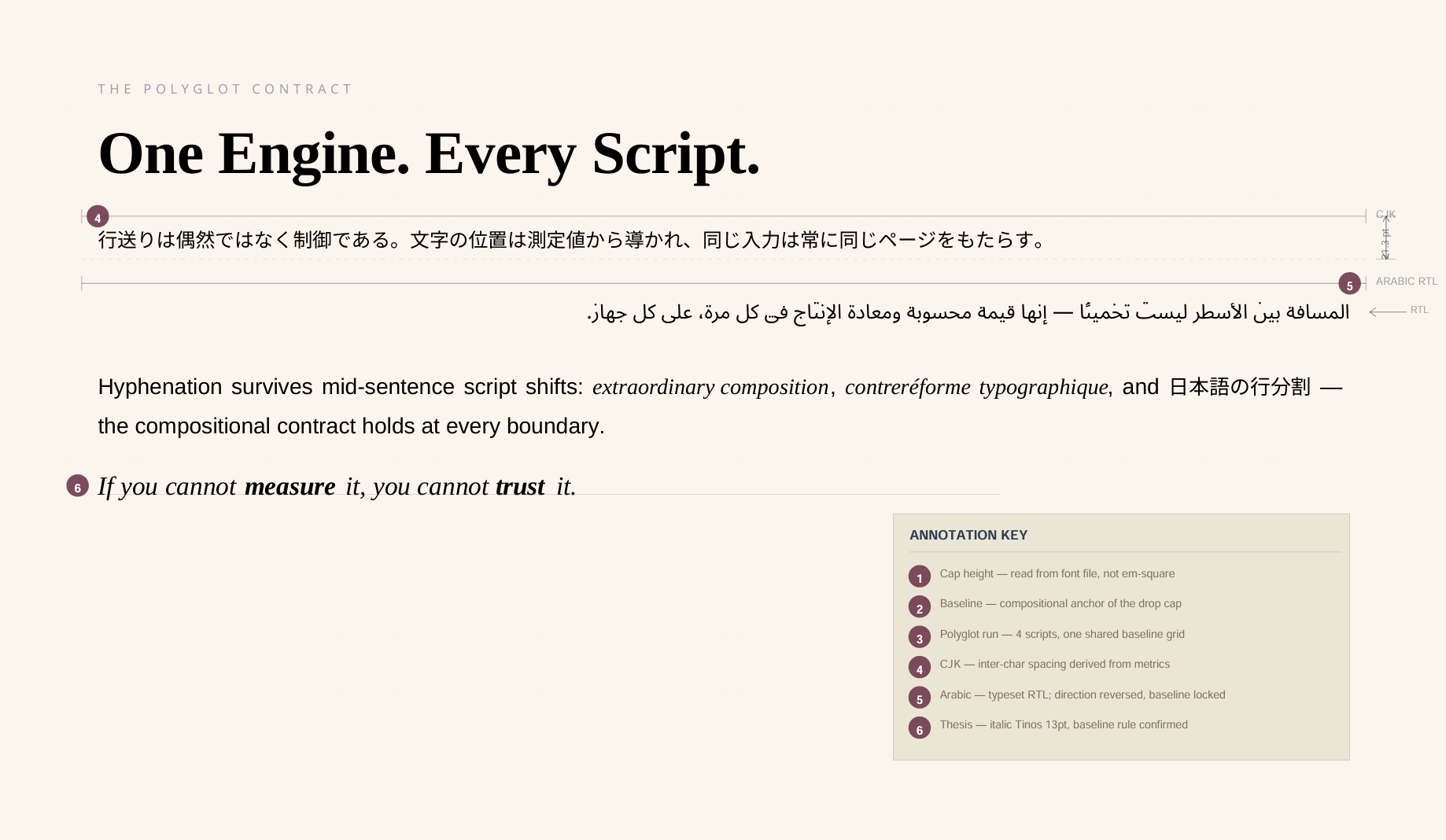

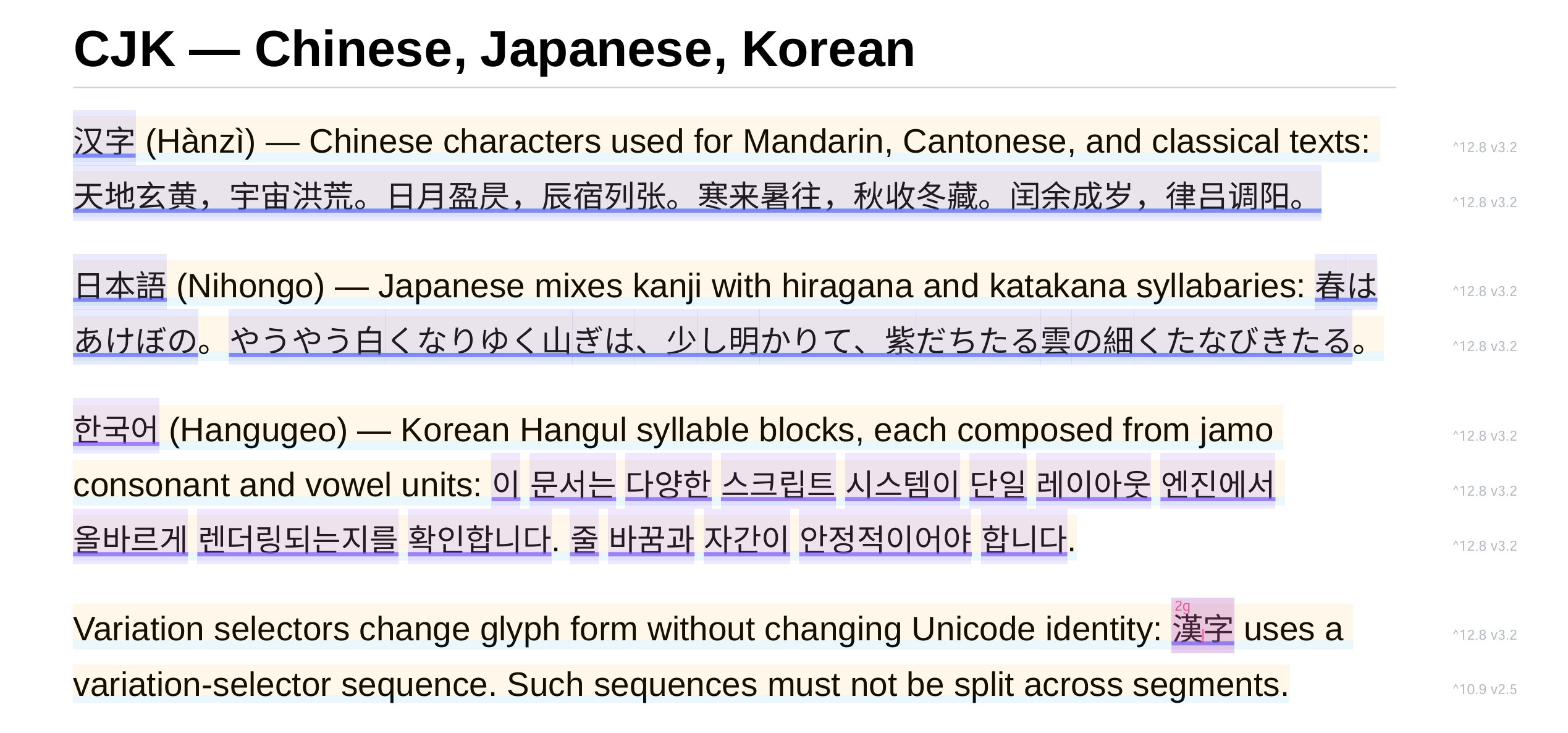

Multi-script and bidi layout without an external shaping engine. No HarfBuzz. No ICU. No system-level binary. Arabic, Hebrew, Thai, Devanagari, CJK, and Latin on the same line, each script segment measured against its own font metrics, bidi-reordered, baseline-aligned against the dominant line metrics, in pure JS.

Content-only updates that never trigger spatial resettlement. When a page counter updates from 11 to 12, every prior layout system responds by recalculating layout, partially or fully. VMPrint classifies actor update outcomes into three tiers: no-change, content-only, and geometry-changing. A counter changing its displayed number pays the in-place redraw cost only. Nothing downstream is touched.

Deterministic speculative layout with rollback. Widow/orphan control, keep-with-next rules, and cohesion policies are evaluated by placing a speculative branch, scoring it against the continuity policy, and either committing or rolling back to a bit-for-bit identical kernel snapshot. The rollback is atomic and complete: active actor state, signal bus staging buffers, and world-space coordinates all revert exactly.

Layout output as flat, traceable, serializable data. The engine produces Page[] of Box[]: absolutely positioned primitives with semantic provenance on every box. Diff layout changes as JSON. Pre-compile and cache the layout, render it later. Feed the flat geometry directly to a GPU draw pipeline. This is the format Canvas and WebGL consumers need.

Documents that program themselves. VMPrint documents can carry script methods that run as first-class participants in the layout simulation, not as post-processing hooks. An onReady() handler fires after layout has fully settled and can query real page numbers, real element positions, and real content counts, then mutate the document structure in response. When a script mutates structure, the simulation resettles from the earliest affected point, not from scratch.

Patent-pending microkernel architecture. The engine's behavior, including single-pass cyclic dependency resolution, speculative pathfinding with deterministic rollback, branch-aware transactional signal isolation, three-tier update outcome classification, world-map spatial model with viewport-based pagination, and kernel-owned simulation clock, is covered by a pending patent application with reduction-to-practice evidence for the claimed mechanisms.

Get started

npm install @vmprint/engine @vmprint/local-fonts @vmprint/context-pdf

Start paths:

QUICKSTART.md for the repo-level orientation
pressrun/ for the smallest practical bootstrap example
engine/README.md for the engine package surface
guides/ for authored usage guides
references/ for compact reference material

Packages

This repository

Package	Purpose
`@vmprint/engine`	Layout engine and primary API
`@vmprint/cli`	CLI for batch JSON-to-PDF workflows
`pressrun`	Smallest practical engine bootstrap example

Companion repositories

Package / Repository	Purpose
`@vmprint/context-pdf`	PDF output context
`@vmprint/local-fonts`	Font manager for Node.js and URL-backed fonts
`@vmprint/standard-fonts`	Standard PDF font manager with zero embedded font files
vmprint-preview	Browser preview and hit-testing surface built on top of the engine
vmprint-transmuters	Markdown to VMPrint document compilers

FAQ

Just want to preview a document in the browser?
vmprint-preview packages the engine into a browser canvas with live preview, zoom, hit-testing, and export workflows. You do not need to write engine code for that.

Why not Typst?
Typst is excellent for authored documents and produces beautiful output. It is also a Rust binary. You cannot import it into a Node process, run it in a browser, deploy it to a Cloudflare Worker, or call it as a library from a TypeScript application. If you need a layout engine embedded in a JS or TS runtime, Typst is not available to you.

Why not Puppeteer / headless Chrome?
Puppeteer is a browser automation tool. It produces PDFs as a side effect of printing a rendered web page. Each concurrent worker requires a full Chrome instance, substantial RAM, cold-start overhead, and subprocess privilege. For one-off document generation it is adequate. For high-volume production workloads the resource cost is substantial and scales linearly with concurrency. VMPrint runs inside your existing application process.

Is this react-pdf?
No. react-pdf is a declarative PDF component renderer that assembles PDF primitives through a React tree. VMPrint is a layout engine: it computes where things go, produces that result as inspectable data, and hands it to an output context. Layout computation and rendering are separate, explicit steps.

Why not LaTeX?
LaTeX produces excellent typographic output. It is also a macro system wrapped around an external binary and usually requires multiple compilation passes plus auxiliary files to resolve cross-references. It is not embeddable as a library in a running TypeScript application.

Does it work in the browser?
Yes. The engine is pure TypeScript with no native binary dependencies. Pair it with a browser-compatible context and font manager and the full layout pass can run client-side.

Can it handle Arabic, Hebrew, Thai, CJK?
Yes. Bidi reordering, right-to-left paragraph flow, complex script segmentation, and multi-script baseline alignment are native to the engine, not bolted on through HarfBuzz or ICU.

Layout engines are notoriously hard to build correctly. Why trust this one?
The architecture is covered by a patent application with reduction-to-practice evidence for the novel mechanisms, and the regression suite exercises a broad set of layout configurations. The large benchmark documents exercise floats, tables, drop caps, multi-column story flow, headers, footers, and cross-references together rather than in isolation.

Is the scripting system just a template engine?
No. Template engines substitute variables before layout runs and produce a static document. VMPrint scripting runs as part of the simulation. Handlers fire at specific lifecycle points, can query settled layout facts, and can mutate document structure in ways that cause the simulation to resettle from the affected point.

Is the output format stable?
The document AST is versioned ("documentVersion": "1.1"). The serialized layout output (AnnotatedLayoutStream) is stable enough to emit, diff, cache, and re-render later with --render-from-layout.
